ESD Protection Devices from SMC Diode Solutions
Power: 20W-600W
VRVM:3.3V,5V
Package:DFNWB2.5¡Á1-10L,SOT-353,SOT-363,SOT-523,SOT-563,DFN1006,SOD-523,SOD-923
Part Number
Data Sheet
Spice Model
Package
Product Image
Pd (8/20¦Ìs)(W)
VWM (V)
VBR Min. @1mA (V)
VC Max.@1A (V)
IR Max.@VWM (¦ÌA)
Cj Max. (f=1MHz) @0V (pF)
Part Status
Packagefile
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter

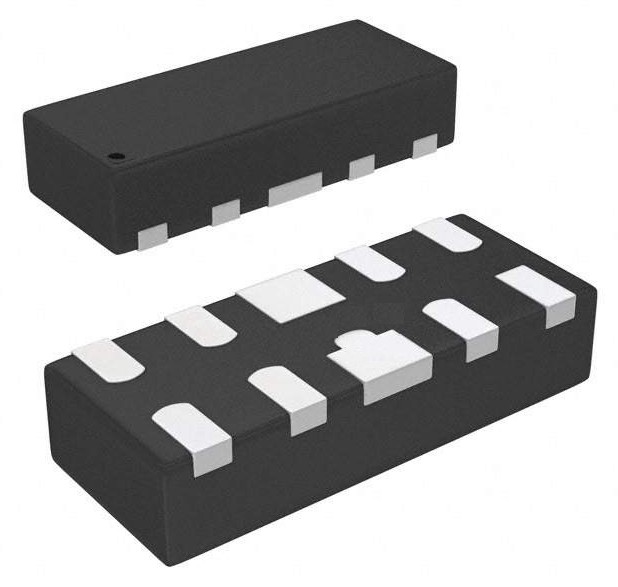

eGuard0324P DFNWB2.5¡Á1-10L - 3.3 4.5 10.5 1 0.4 Active
SD52303 SOD-523 158 3.3 5 - 0.05 - Active
SD52303-A SOD-523 158 3.3 5 - 0.05 - Active

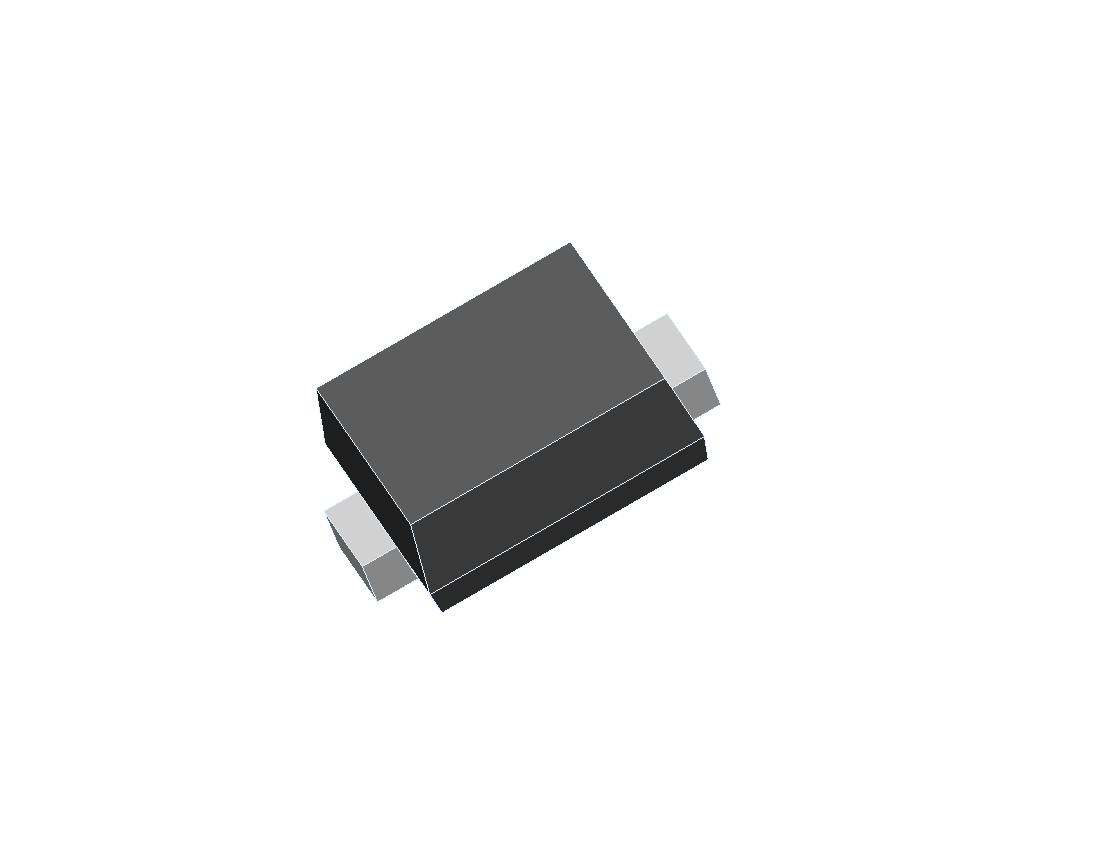

SD92303 SOD-923 92 3.3 5 - 2.5 - Active
SD92305 SOD-923 92 5 6.2 - 1 - Active
SD92303-A SOD-923 92 3.3 5 - 2.5 - Active
SD92305-A SOD-923 92 5 6.2 - 1 - Active
eGuard0524P-A DFNWB2.5¡Á1-10L 150 5 6 10.5 1 0.4 Active
ESDB5.0CM9 SOD-923 - 5 5.6 8 1 - Active
eGuard0524P DFNWB2.5¡Á1-10L 150 5 6 10.5 1 0.4 Active

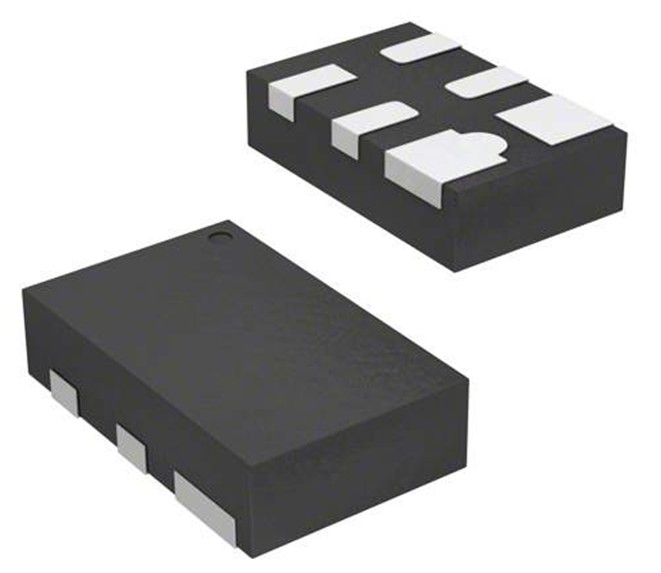

eGuard0522P UDFN 6L 150 5 6 15 1 0.4 Active

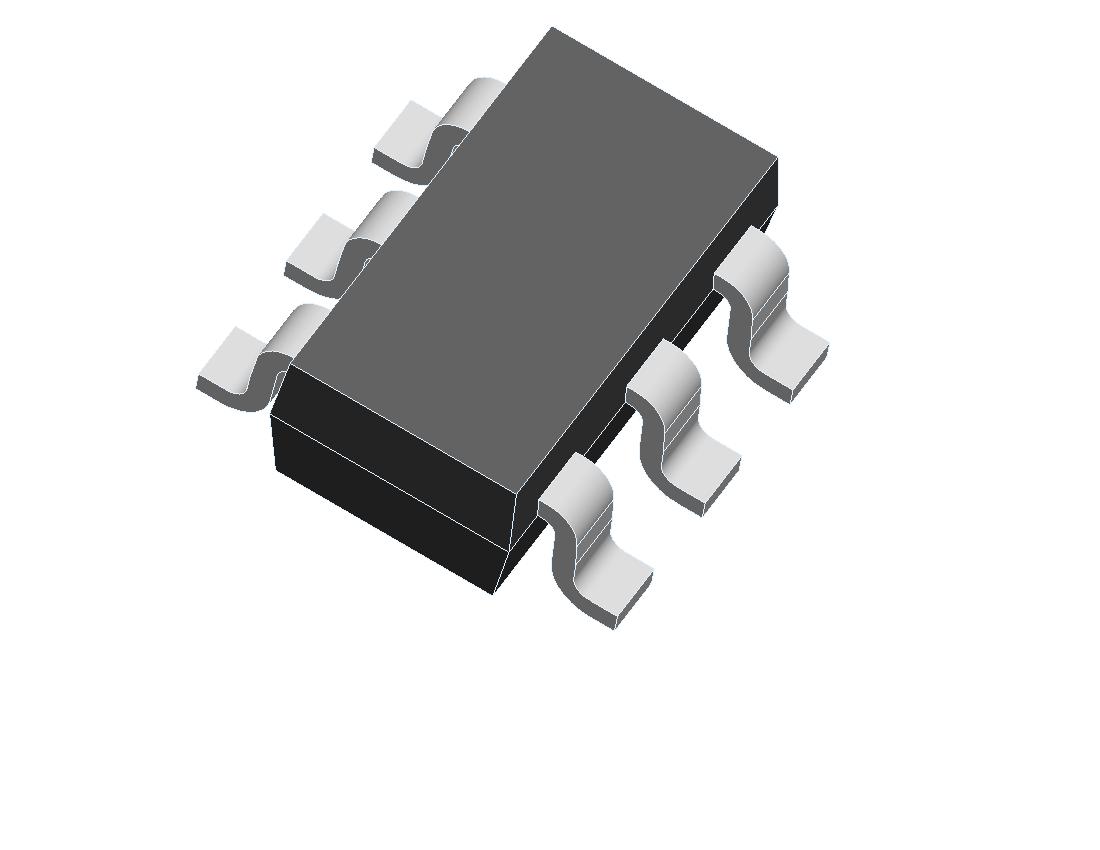

SRV05-4A SOT-23-6 300 5 6 12.5 5 5 Active
SESD5V0S1ULA DFN1006 110 5 6.4 9 1 150 Not for new designs
eGuard0503F SOT-353 150 5 6 15 3 3 Active

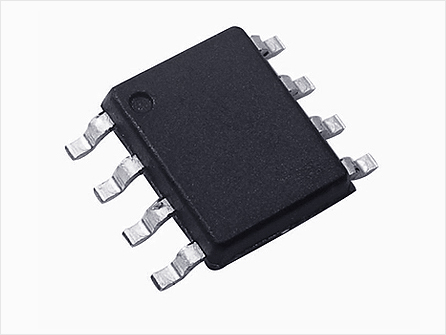

SLVU2.8-4 SO-8 600 2.8 - - 1 5 Not for new designs
SESD5V0V1BLA DFN1006 40 5 5.8 - 0.01 13 Not for new designs
SESD5V0S1UL DFN1006 150 5 6.4 9 1 200 Not for new designs
eGuard0551P DFN1006 80 5 6 15 0.1 0.5 Active
eGuard0502A SOT-563 50 5 6 14 1 0.9 Active

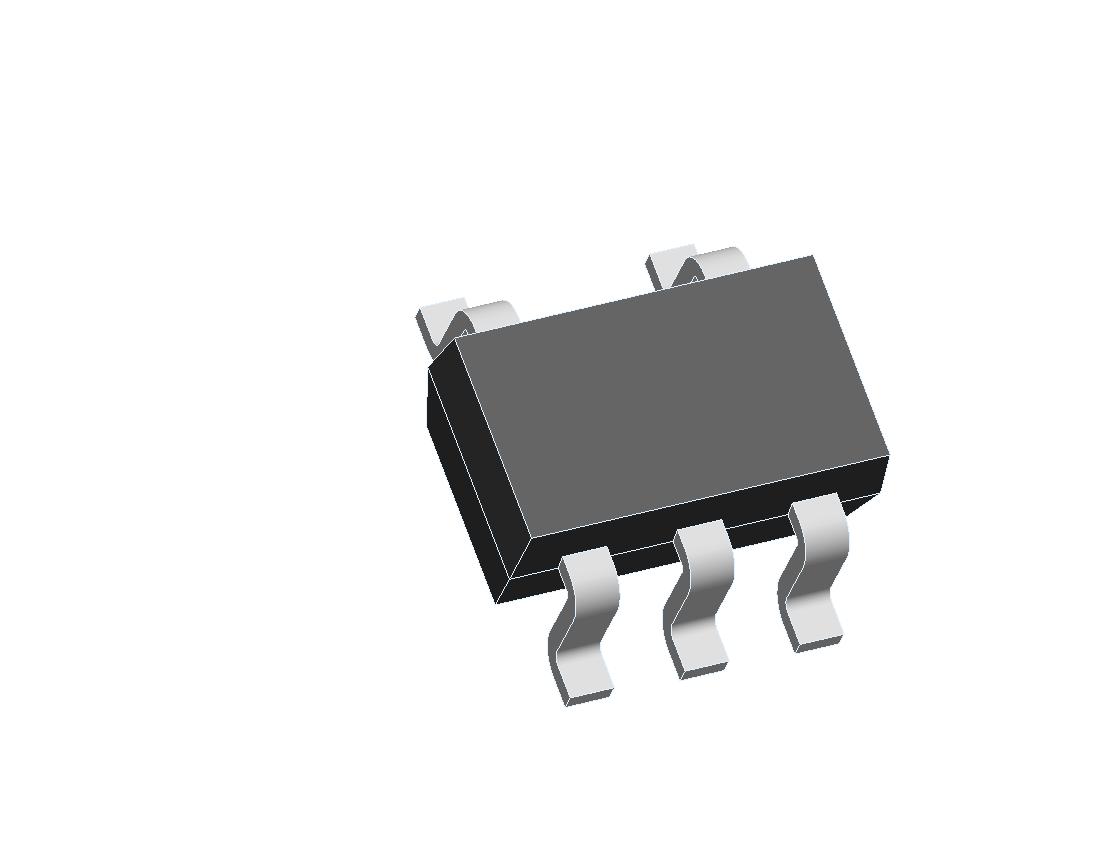

eGuard0502B SOT-523 125 5 6 15 1 0.9 Active

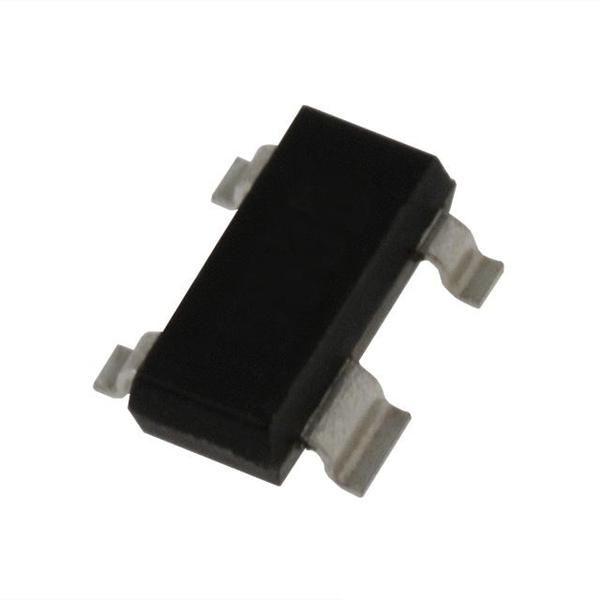

SR05 SOT-143 500 5 6 9.8 5 10 Not for new designs
ESD133C DFN1006 - 33 35 - 1 20 Active
uGuard2804 SO-8 120 2.8 - 6 0.05 - Active

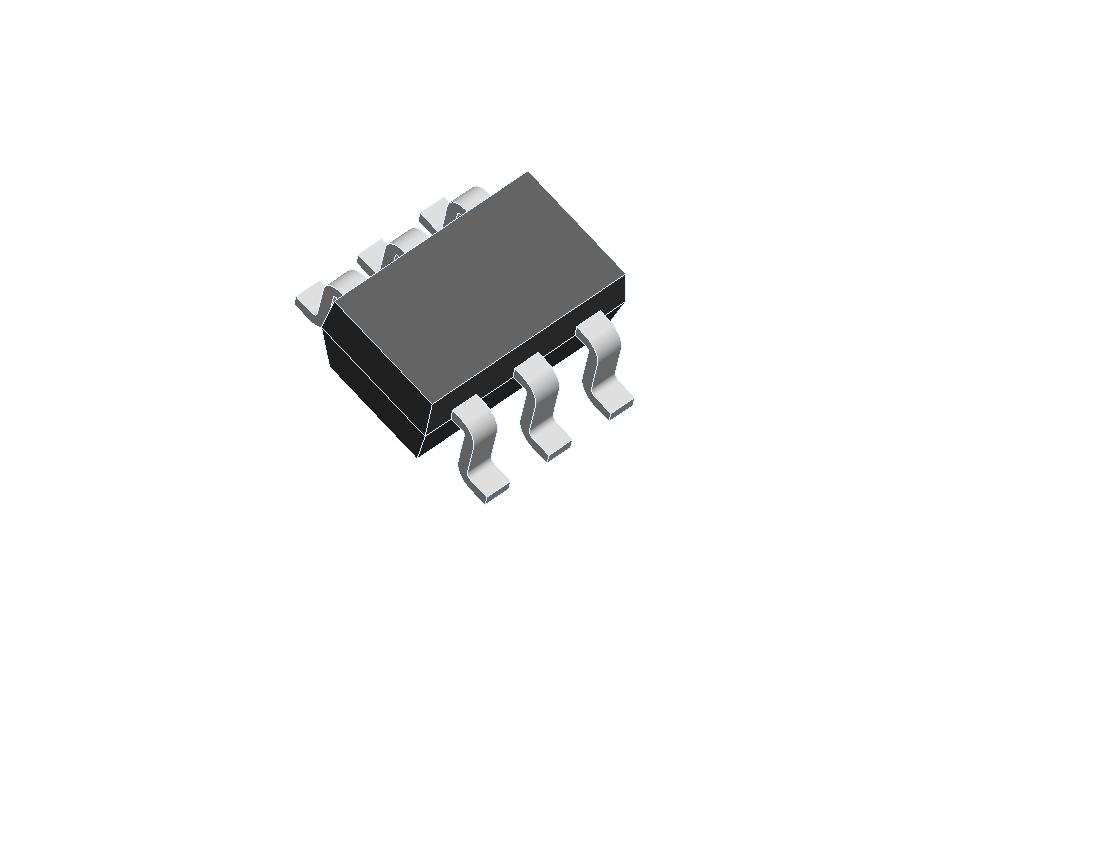

eGuard0504F SOT-363 150 5 6 15 3 3 Active
