Fast Recovery Rectifiers from SMC Diode Solutions
IO:0.2A-8A
VRWM:50V,100V,200V,400V,600V,800V,1000V,2000V
Package:DO-15,DO-41,DO-201AD,R-1,SMA,SMAF,SMB,SMC,SOD-123SL,SOD-123FL,TO-220AC
Trr:150ns-500ns
Part Number
Spice Model
Package
Product Image
VRWM（V）
IO (A)
IFSM Max.(A)
IR Max. @VRWM (μA)
VF Max. (V)
Trr Max. (ns)
Part Status
Package file
Data Sheet
IR Max.(μA)
Purchase
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter

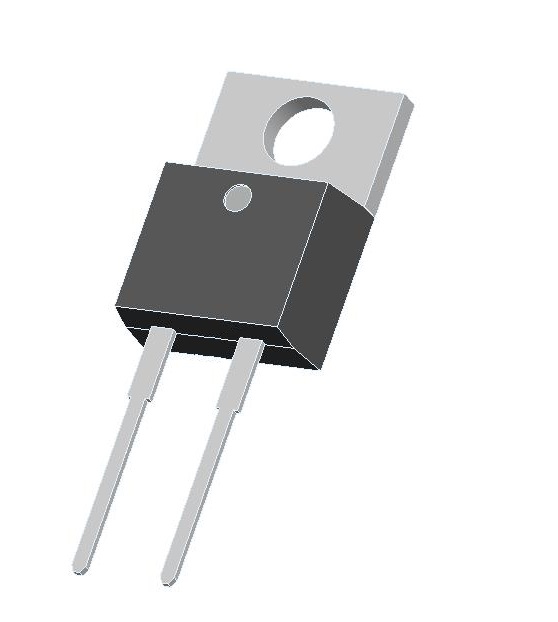

FR801G TO-220AC 50 8 200 5 1.3 150 Active
FR802G TO-220AC 100 8 200 5 1.3 150 Active
FR803G TO-220AC 200 8 200 5 1.3 150 Active
FR804G TO-220AC 400 8 200 5 1.3 150 Active
FR805G TO-220AC 600 8 200 5 1.3 250 Active
FR806G TO-220AC 800 8 200 5 1.3 500 Active
FR807G TO-220AC 1000 8 200 5 1.3 500 Active

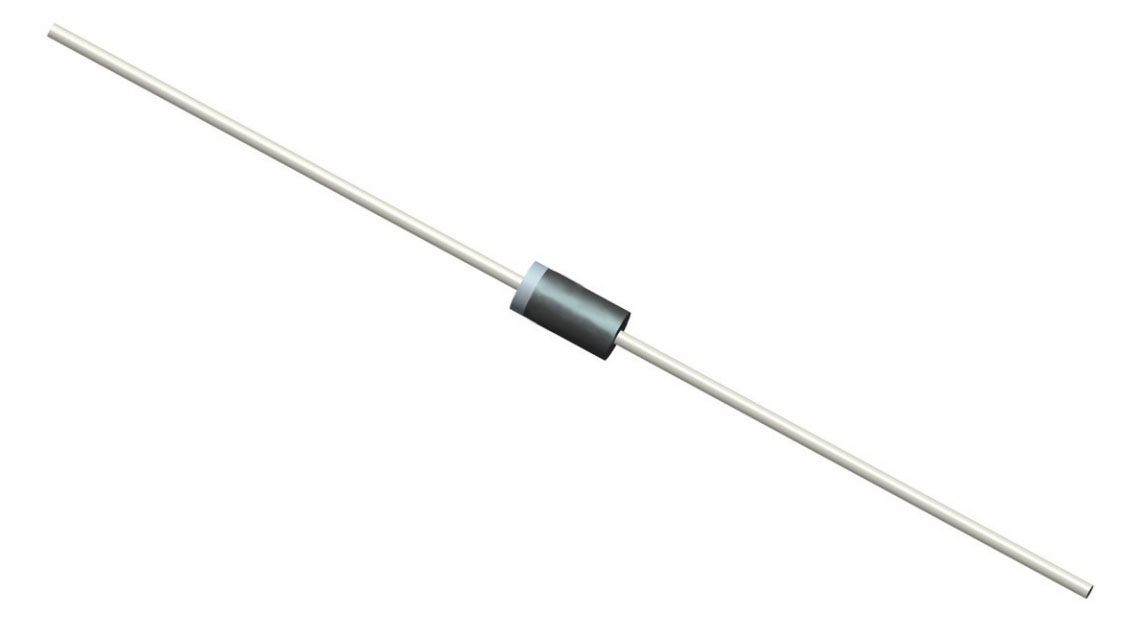

R2000F DO-41 2000 0.2 30 5 4 500 Active

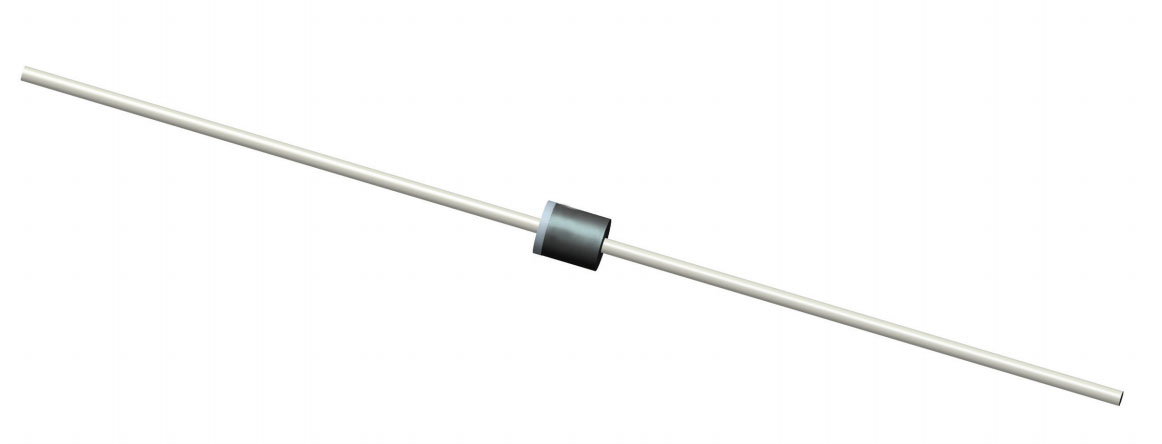

1F1 R-1 50 1 25 5 1.3 150 Active
1F2 R-1 100 1 25 5 1.3 150 Active
1F3 R-1 200 1 25 5 1.3 150 Active
1F4 R-1 400 1 25 5 1.3 150 Active
1F5 R-1 600 1 25 5 1.3 250 Active
1F6 R-1 800 1 25 5 1.3 500 Active
1F7 R-1 1000 1 25 5 1.3 500 Active
FR101G DO-41 50 1 30 5 1.3 150 Active
FR102G DO-41 100 1 30 5 1.3 150 Active
FR103G DO-41 200 1 30 5 1.3 150 Active
FR104G DO-41 400 1 30 5 1.3 150 Active
FR105G DO-41 600 1 30 5 1.3 250 Active
FR106G DO-41 800 1 30 5 1.3 500 Active
FR107G DO-41 1000 1 30 5 1.3 500 Active
RL101F A-405 50 1 30 5 1.3 150 Not for new designs
RL102F A-405 100 1 30 5 1.3 150 Not for new designs
RL103F A-405 200 1 30 5 1.3 150 Not for new designs
RL104F A-405 400 1 30 5 1.3 150 Not for new designs
RL105F A-405 600 1 30 5 1.3 250 Not for new designs
RL106F A-405 800 1 30 5 1.3 500 Not for new designs
RL107F A-405 1000 1 30 5 1.3 500 Not for new designs

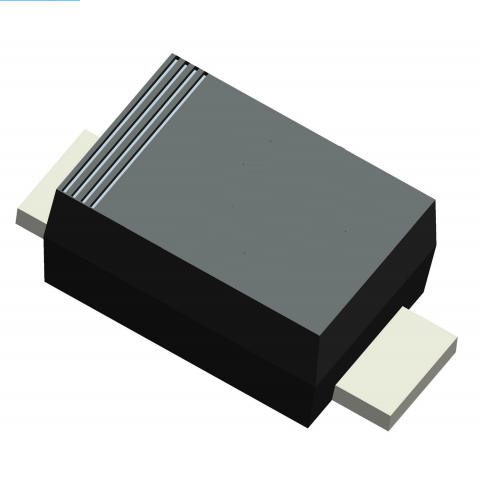

R1A SMAF 50 1 30 5 1.3 150 Active
R1B SMAF 100 1 30 5 1.3 150 Active
R1D SMAF 200 1 30 5 1.3 150 Active
R1G SMAF 400 1 30 5 1.3 150 Active
R1J SMAF 600 1 30 5 1.3 250 Active
R1K SMAF 800 1 30 5 1.3 500 Active
R1M SMAF 1000 1 30 5 1.3 500 Active
RS1AL SOD-123FL 50 1 30 5 1.3 150 Active
RS1BL SOD-123FL 100 1 30 5 1.3 150 Active
RS1DL SOD-123FL 200 1 30 5 1.3 150 Active
RS1GL SOD-123FL 400 1 30 5 1.3 150 Active
RS1JL SOD-123FL 600 1 30 5 1.3 250 Active
RS1KL SOD-123FL 800 1 30 5 1.3 500 Active
RS1ML SOD-123FL 1000 1 30 5 1.3 500 Active

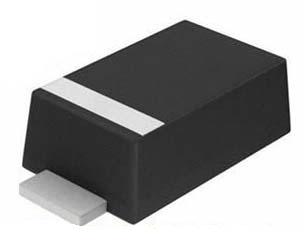

FFM107 SOD-123SL 1000 1.2 50 5 1.3 250 Active

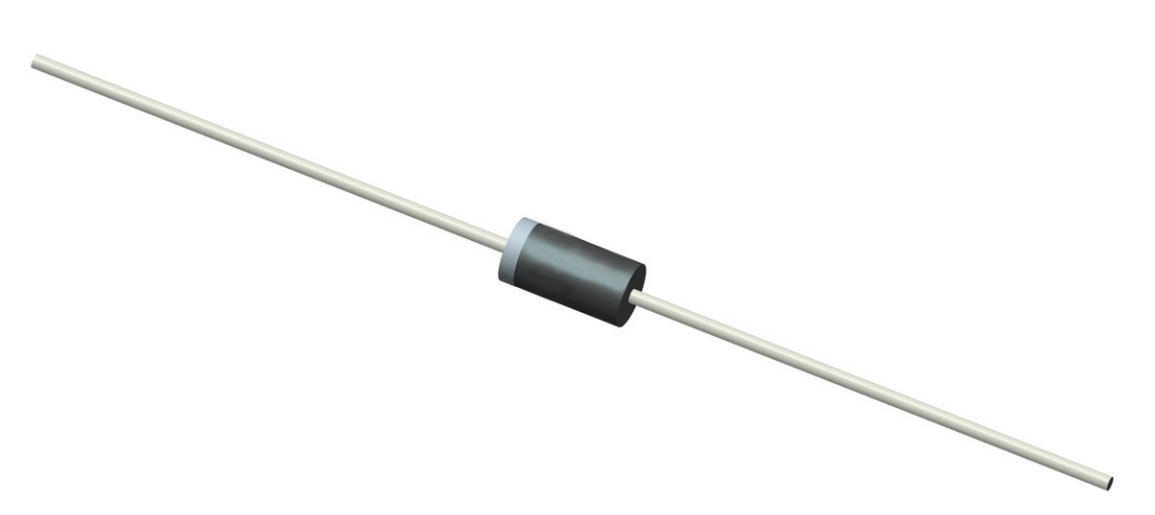

FR151G DO-15 50 1.5 50 5 1.3 150 Active
FR152G DO-15 100 1.5 50 5 1.3 150 Active
FR153G DO-15 200 1.5 50 5 1.3 150 Active
FR154G DO-15 400 1.5 50 5 1.3 150 Active
FR155G DO-15 600 1.5 50 5 1.3 250 Active
FR156G DO-15 800 1.5 50 5 1.3 500 Active
FR157G DO-15 1000 1.5 50 5 1.3 500 Active
FR201G DO-15 50 2 70 5 1.3 150 Active
FR202G DO-15 100 2 70 5 1.3 150 Active
FR203G DO-15 200 2 70 5 1.3 150 Active
FR204G DO-15 400 2 70 5 1.3 150 Active
FR205G DO-15 600 2 70 5 1.3 250 Active
FR206G DO-15 800 2 70 5 1.3 500 Active
FR207G DO-15 1000 2 70 5 1.3 500 Active
FR2A SMB 50 2 50 5 1.3 150 Active
FR2B SMB 100 2 50 5 1.3 150 Active
FR2D SMB 200 2 50 5 1.3 150 Active
FR2G SMB 400 2 50 5 1.3 150 Active
FR2J SMB 600 2 50 5 1.3 250 Active
FR2K SMB 800 2 50 5 1.3 500 Active
RS2A SMB 50 2 50 5 1.3 150 Active
RS2B SMB 100 2 50 5 1.3 150 Active
RS2D SMB 200 2 50 5 1.3 150 Active
RS2G SMB 400 2 50 5 1.3 150 Active
RS2J SMB 600 2 50 5 1.3 250 Active
RS2K SMB 800 2 50 5 1.3 500 Active
RS2M SMB 1000 2 50 5 1.3 500 Active
RS3AAF SMAF 50 3 90 5 1.3 160 Active
RS3BAF SMAF 100 3 90 5 1.3 160 Active
RS3DAF SMAF 200 3 90 5 1.3 160 Active
RS3GAF SMAF 400 3 90 5 1.3 160 Active
RS3JAF SMAF 600 3 90 5 1.3 160 Active
RS3KAF SMAF 800 3 90 5 1.3 160 Active
RS3MAF SMAF 1000 3 90 5 1.3 160 Active

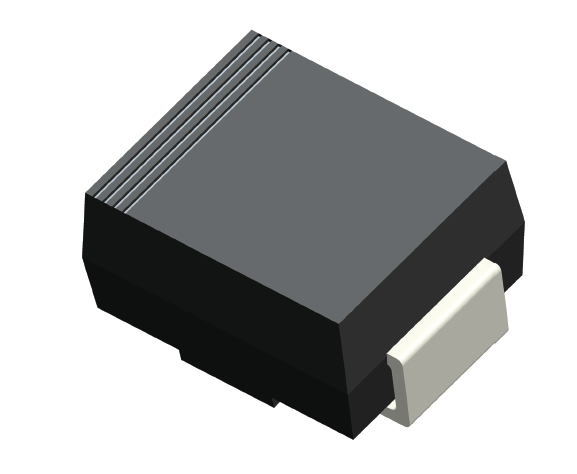

RS3A SMC 50 3 100 10 1.3 150 Active
RS3B SMC 100 3 100 10 1.3 150 Active
RS3D SMC 200 3 100 10 1.3 150 Active
RS3G SMC 400 3 100 10 1.3 150 Active
RS3J SMC 600 3 100 10 1.3 250 Active
RS3K SMC 800 3 100 10 1.3 500 Active
RS3M SMC 1000 3 100 10 1.3 500 Active

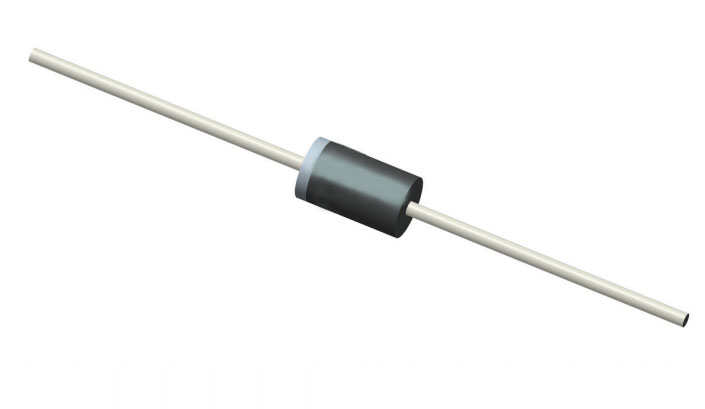

FR301G DO-201AD 50 3 125 5 1.3 150 Active
FR302G DO-201AD 100 3 125 5 1.3 150 Active
FR303G DO-201AD 200 3 125 5 1.3 150 Active
FR304G DO-201AD 400 3 125 5 1.3 150 Active
FR305G DO-201AD 600 3 125 5 1.3 250 Active
FR306G DO-201AD 800 3 125 5 1.3 500 Active
FR307G DO-201AD 1000 3 125 5 1.3 500 Active
RS1A SMA 50 1 30 5 1.3 150 Active
RS1B SMA 100 1 30 5 1.3 150 Active
RS1D SMA 200 1 30 5 1.3 150 Active
RS1G SMA 400 1 30 5 1.3 150 Active
RS1J SMA 600 1 30 5 1.3 250 Active
RS1K SMA 800 1 30 5 1.3 500 Active
RS1M SMA 1000 1 30 5 1.3 500 Active
RS1A-A SMA 50 1 30 5 1.3 150 Active
RS1B-A SMA 100 1 30 5 1.3 150 Active
RS1D-A SMA 200 1 30 5 1.3 150 Active
RS1G-A SMA 400 1 30 5 1.3 150 Active
RS1J-A SMA 600 1 30 5 1.3 250 Active
RS1K-A SMA 800 1 30 5 1.3 500 Active
RS1M-A SMA 1000 1 30 5 1.3 500 Active
