Ultra Fast Recovery Rectifiers from SMC Diode Solutions
IO:1A-80A
VRWM:50V,100V,150V,200V,250V,300V,400V,500V,530V,600V,800V,1000V

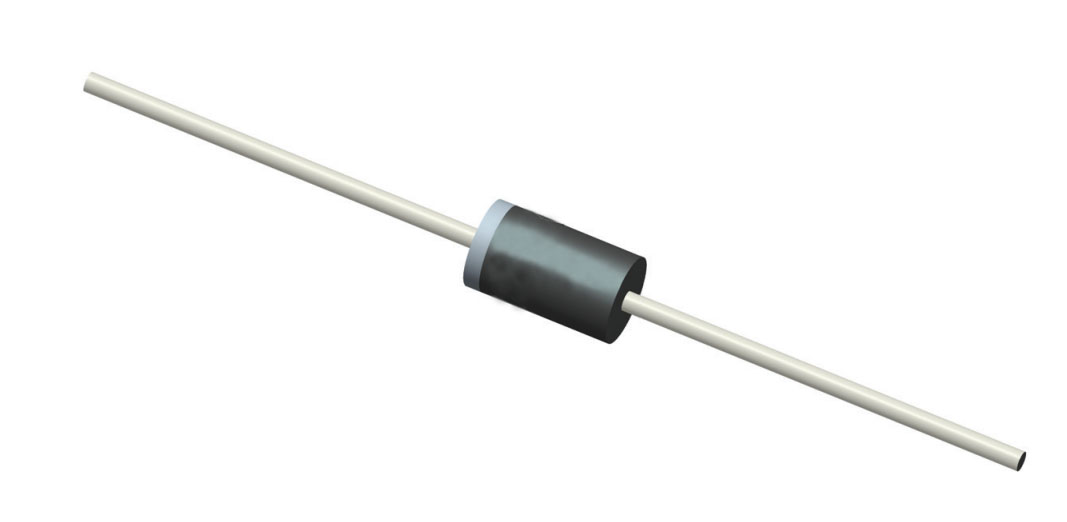

Package:D2PAK,DO-15,DO-41,DO-201AD,DO-201AE,DPAK,ITO-220AB,ITO-220AC,R-1,SMA,SMB,SMC,SOD-123FL,TO-220AB,TO-220AC,TO-247AC,TO-247AD
Trr:15ns-100ns
Part Number
Data Sheet
Spice Model
Package
Product Image
VRWM（V）
IO (A)
IFSM Max.(A)
IR Max. @VRWM (μA)
VF Max. (V)
Trr Max. (ns)
Part Status
Package file
Purchase
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
ES1D SMA 200 1 30 5 0.95 35 Active
ES1E SMA 300 1 30 5 1.3 35 Active
ES1G SMA 400 1 30 5 1.3 35 Active
ES1J SMA 600 1 30 5 1.7 35 Active
ES1M SMA 1000 1 30 5 1.7 75 Active
UA1M SMA 1000 1 30 3 1.7 75 Active
US1M SMA 1000 1 30 5 1.7 75 Active
MURS120 SMB 200 1 40 2 0.9 25 Active
MURS160 SMB 600 1 35 5 1.26 50 Active
ES1ASL SOD-123FL 50 1 30 5 0.95 35 Active
ES1BSL SOD-123FL 100 1 30 5 0.95 35 Active
ES1DSL SOD-123FL 200 1 30 5 0.95 35 Active
ES1GSL SOD-123FL 400 1 30 5 1.25 35 Active
ES1JSL SOD-123FL 600 1 30 5 1.7 35 Active
UF4001G DO-41 50 1 30 5 1 50 Active
UF4002G DO-41 100 1 30 5 1 50 Active
UF4003G DO-41 200 1 30 5 1 50 Active
UF4004G DO-41 400 1 30 5 1 50 Active
UF4005G DO-41 600 1 30 5 1.7 75 Active
UF4006G DO-41 800 1 30 5 1.7 75 Active
UF4007G DO-41 1000 1 30 5 1.7 75 Active
ES2D SMA 200 2 50 5 0.95 35 Active
ES2E SMA 300 2 50 5 1.25 35 Active
ES2G SMA 400 2 50 5 1.25 35 Active
ES2J SMA 600 2 50 5 1.7 35 Active
ER2D SMB 200 2 50 5 0.95 35 Active
ER2E SMB 300 2 50 5 1.25 35 Active
ER2G SMB 400 2 50 5 1.25 35 Active
ER2J SMB 600 2 50 5 1.7 35 Active
ER2K SMB 800 2 50 5 1.7 75 Active
ER2M SMB 1000 2 50 5 1.7 75 Active
HER208G DO-15 1000 2 60 5 1.7 75 Active
SF21G DO-15 50 2 75 5 0.95 35 Active
SF22G DO-15 100 2 75 5 0.95 35 Active
SF23G DO-15 150 2 75 5 0.95 35 Active
SF24G DO-15 200 2 75 5 0.95 35 Active
SF25G DO-15 300 2 75 5 1.25 35 Active
SF26G DO-15 400 2 75 5 1.25 35 Active
SF28G DO-15 600 2 75 5 1.7 35 Active
MURS320 SMC 200 3 75 5 0.9 35 Active
MURS360 SMC 600 3 125 5 1.55 50 Active
MURS360B SMB 600 3 125 10 1.25 50 Active
SDUR340 TO-220AC 400 3 80 30 1.3 30 Active
HER301G DO-201AD 50 3 125 10 1 50 Active
HER302G DO-201AD 100 3 125 10 1 50 Active
HER303G DO-201AD 200 3 125 10 1 50 Active
HER304G DO-201AD 300 3 125 10 1.3 50 Active
HER305G DO-201AD 400 3 125 10 1.3 50 Active
HER306G DO-201AD 600 3 125 10 1.7 75 Active
HER307G DO-201AD 800 3 125 10 1.7 75 Active
HER308G DO-201AD 1000 3 125 10 1.7 75 Active
SF31G DO-201AD 50 3 125 5 0.95 35 Active
SF32G DO-201AD 100 3 125 5 0.95 35 Active
SF33G DO-201AD 150 3 125 5 0.95 35 Active
SF34G DO-201AD 200 3 125 5 0.95 35 Active
SF35G DO-201AD 300 3 125 5 1.25 35 Active
SF36G DO-201AD 400 3 125 5 1.25 35 Active
SF38G DO-201AD 600 3 125 5 1.7 35 Active
SF41G DO-201AD 50 4 150 5 0.95 35 Active
SF42G DO-201AD 100 4 150 5 0.95 35 Active
SF43G DO-201AD 150 4 150 5 0.95 35 Active
SF44G DO-201AD 200 4 150 5 0.95 35 Active
SF45G DO-201AD 300 4 150 5 1.25 35 Active
SF46G DO-201AD 400 4 150 5 1.25 35 Active
SF48G DO-201AD 600 4 150 5 1.7 35 Active
SDUR460 TO-220AC 600 4 60 3 1.55 50 Active
SDUR460A TO-220AC 600 4 60 5 1.7 35 Active
ER5D SMC 200 5 150 5 0.95 35 Active
ER5E SMC 300 5 150 5 1.25 35 Active
ER5G SMC 400 5 150 5 1.25 35 Active
ER5J SMC 600 5 150 5 1.7 35 Active
SDUR520 TO-220AC 200 5 125 10 0.975 35 Active
SDUR530 TO-220AC 300 5 70 30 1.3 45 Active
SDUR540 TO-220AC 400 5 70 30 1.3 45 Active
SDUR560 TO-220AC 600 5 60 5 1.55 50 Active

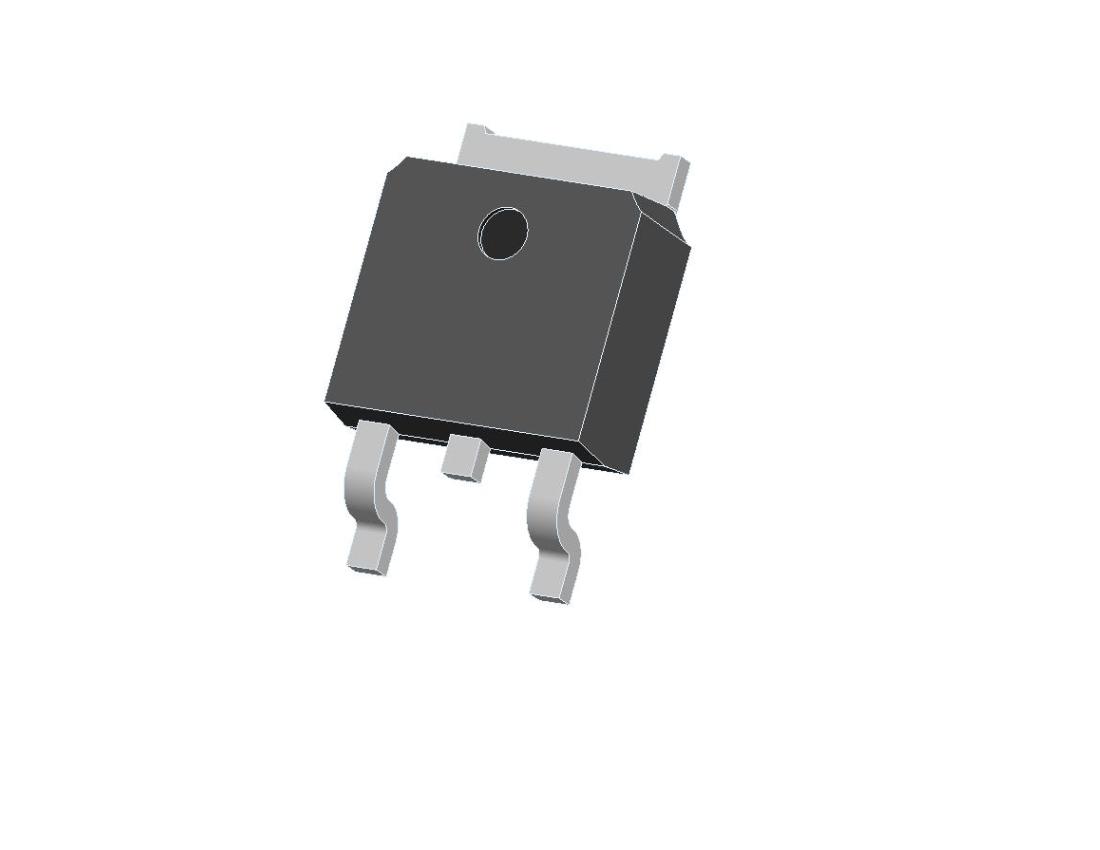

SDURD520 DPAK 200 5 125 10 0.975 35 Active
SDURD530 DPAK 300 5 70 30 1.3 45 Active
SDURD540 DPAK 400 5 70 30 1.3 45 Active
SDURD560 DPAK 600 5 60 5 1.55 50 Active
SDURD560A DPAK 600 5 60 5 1.7 35 Active

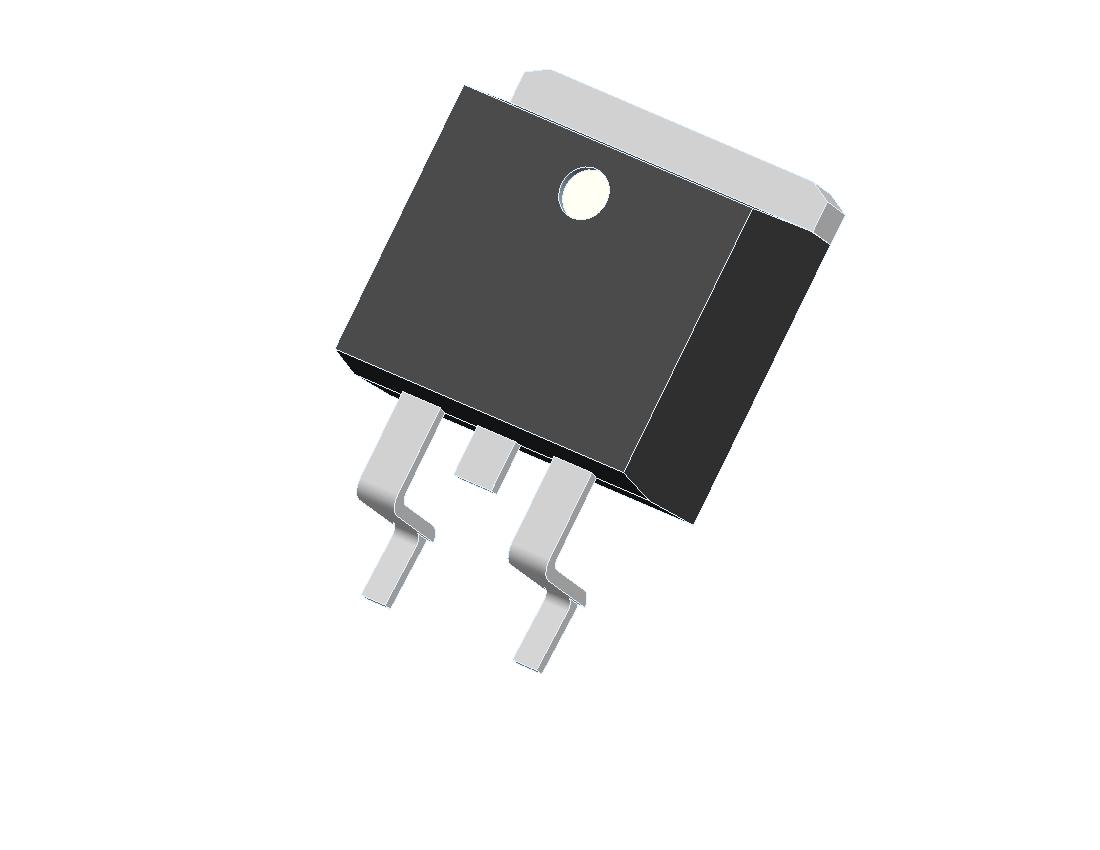

SDURB520 D2PAK 200 5 125 10 0.975 35 Active
SDURB530 D2PAK 300 5 70 30 1.3 45 Active
SDURB540 D2PAK 400 5 70 30 1.3 45 Active
SDURB560 D2PAK 600 5 60 5 1.55 50 Active

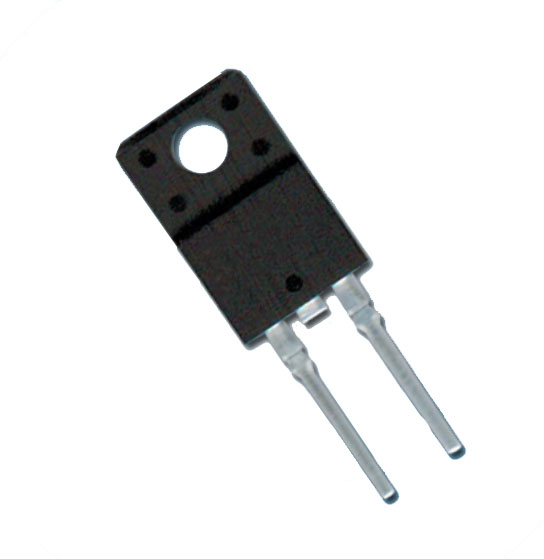

SDURF520 ITO-220AC 200 5 125 10 0.975 35 Active
SDURF530 ITO-220AC 300 5 70 30 1.3 45 Active
SDURF540 ITO-220AC 400 5 70 30 1.3 45 Active
SDURF560A ITO-220AC 600 5 60 5 1.7 35 Active
SDURF560 ITO-220AC 600 5 60 5 1.55 50 Active
SDURD620CT DPAK 200 6 80 5 1.2 35 Active
SDURF660 ITO-220AC 600 6 60 5 1.7 50 Active
SDUR820 TO-220AC 200 8 80 5 1.2 35 Active
SDUR830 TO-220AC 300 8 80 10 1.3 45 Active
SDUR840 TO-220AC 400 8 80 10 1.3 45 Active
SDUR860 TO-220AC 600 8 80 5 2.2 50 Active
SDURD820 DPAK 200 8 80 5 1.2 35 Active
SDURD830 DPAK 300 8 80 10 1.3 45 Active
SDURD840 DPAK 400 8 80 10 1.3 45 Active
SDURD860 DPAK 600 8 80 8 1.7 50 Active
SDURB820 D2PAK 200 8 80 5 1.2 35 Active
SDURB830 D2PAK 300 8 80 10 1.3 45 Active
SDURB840 D2PAK 400 8 80 10 1.3 45 Active
SDURB860 D2PAK 600 8 80 5 2.2 50 Active
SDURB860A D2PAK 600 8 80 8 2 35 Active
SDURF820 ITO-220AC 200 8 80 5 1.2 35 Active
SDURF830 ITO-220AC 300 8 80 10 1.3 45 Active
SDURF840 ITO-220AC 400 8 80 10 1.3 45 Active
SDURF860 ITO-220AC 600 8 80 5 1.7 50 Active
SDUR1020 TO-220AC 200 10 125 15 1.15 35 Active
SDUR1030 TO-220AC 300 10 150 30 1.3 35 Active
SDUR1040 TO-220AC 400 10 125 10 1.3 45 Active
SDUR1060 TO-220AC 600 10 100 10 2.2 32 Active

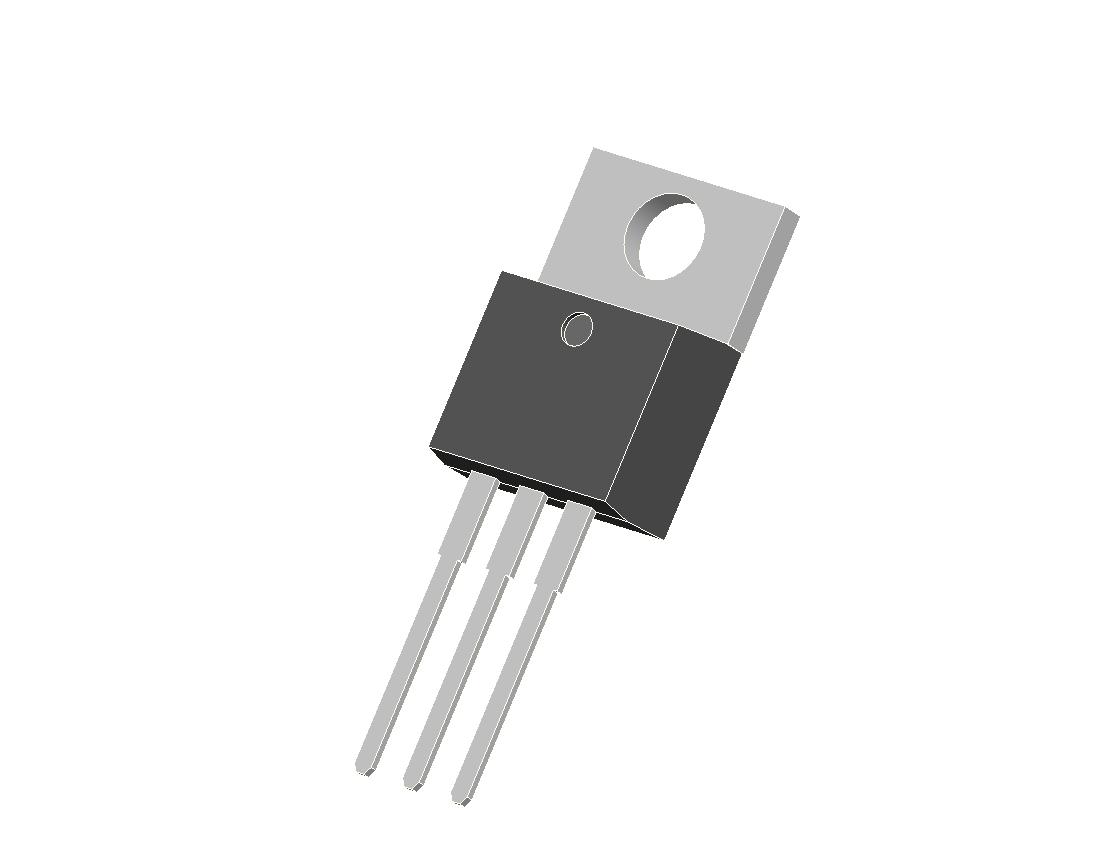

SDUR1020CT TO-220AB 200 10 125 10 0.975 35 Active
SDUR1030CT TO-220AB 300 10 70 30 1.3 35 Active
SDUR1040CT TO-220AB 400 10 70 30 1.3 45 Active
SDUR1060CT TO-220AB 600 10 60 5 1.55 50 Active
SDURF1020 ITO-220AC 200 10 125 15 1.15 35 Active
SDURF1030 ITO-220AC 300 10 150 30 1.3 35 Active
SDURF1040 ITO-220AC 400 10 125 10 1.3 45 Active
SDURF1060A ITO-220AC 600 10 100 10 2.2 35 Active
SDURF1060 ITO-220AC 600 10 100 10 2.2 32 Active
SDURF10H60 ITO-220AC 600 10 100 10 2.2 32 Active
LURF1060 ITO-220AC 600 10 180 5 2.2 50 Active

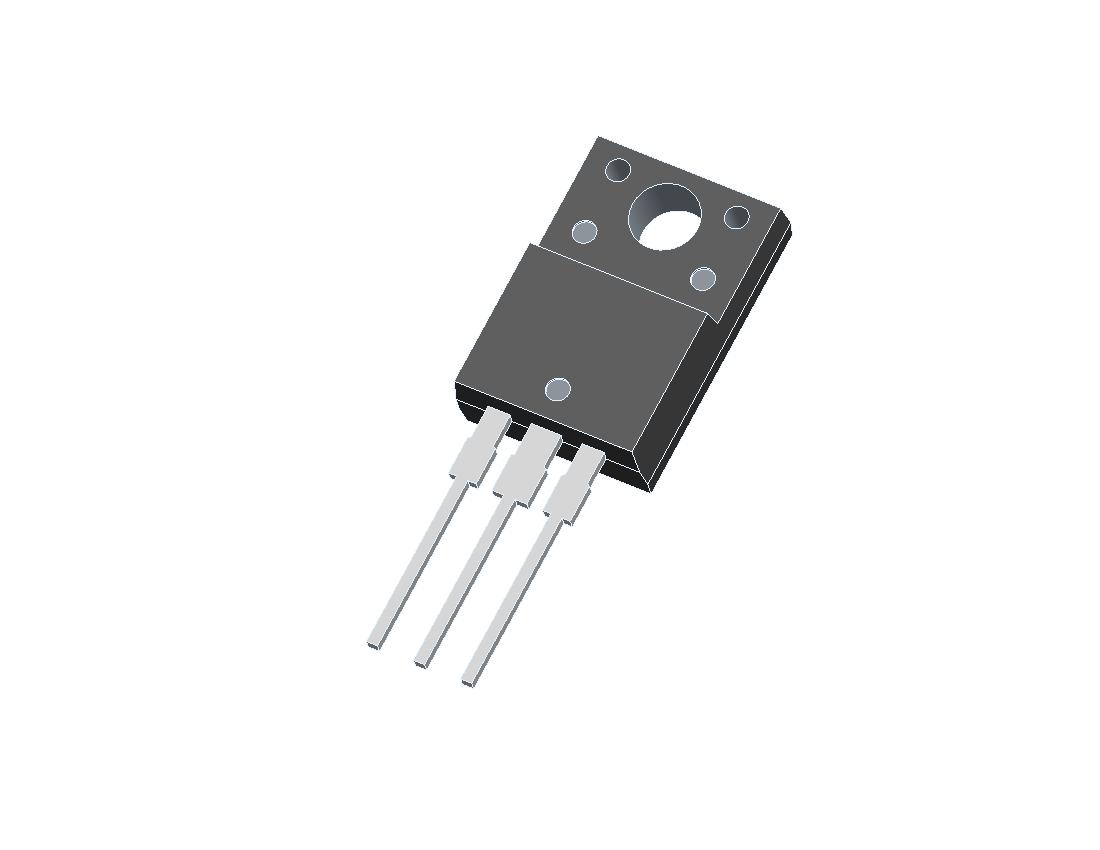

SDURF1020CT ITO-220AB 200 10 125 10 0.975 35 Active
SDURF1020CTR ITO-220AB 200 10 125 10 0.975 35 Active
SDURF1030CT ITO-220AB 300 10 70 30 1.3 45 Active
SDURF1030CTR ITO-220AB 300 10 70 30 1.3 45 Active
SDURF1040CT ITO-220AB 400 10 70 30 1.3 45 Active
SDURF1040CTR ITO-220AB 400 10 70 30 1.3 45 Active
SDURF1040CTA ITO-220AB 400 10 80 30 1.4 35 Active
SDURF1040CTRA ITO-220AB 400 10 80 30 1.4 35 Active
SDURF1060CT ITO-220AB 600 10 60 5 1.55 50 Active
SDURF1060CTR ITO-220AB 600 10 60 5 1.55 50 Active
SDURF10H60CT ITO-220AB 600 10 60 5 1.8 40 Active
SDURF10H60CTR ITO-220AB 600 10 60 5 1.8 40 Active
SDURF1060CTA ITO-220AB 600 10 60 5 2 35 Active
SDURF1060CTRA ITO-220AB 600 10 60 5 2 35 Active
SDURD1020 DPAK 200 10 125 15 1.15 35 Active
SDURD1020CT DPAK 200 10 125 10 0.975 35 Active
SDURD1030 DPAK 300 10 60 30 1.3 35 Active
SDURD1030CT DPAK 300 10 70 30 1.3 45 Active
SDURD1040 DPAK 400 10 60 10 1.5 45 Active
SDURD1040CT DPAK 400 10 70 30 1.3 45 Active
SDURD1060 DPAK 600 10 100 10 2.2 32 Active
SDURD1060B DPAK 600 10 70 50 2.5 25 Active
SDURD1060CT DPAK 600 10 60 5 1.55 50 Active
SDURD1060CTA DPAK 600 10 60 5 1.7 35 Active
SDURB1020 D2PAK 200 10 125 15 1.15 35 Active
SDURB1020CT D2PAK 200 10 125 10 0.975 35 Active
SDURB1030 D2PAK 300 10 150 30 1.3 35 Active
SDURB1030CT D2PAK 300 10 70 30 1.3 45 Active
SDURB1040 D2PAK 400 10 125 10 1.3 45 Active
SDURB1040CT D2PAK 400 10 70 30 1.3 45 Active
SDURB1060 D2PAK 600 10 100 10 2.2 32 Active
SDURB1060CT D2PAK 600 10 60 5 1.55 50 Active
SDUR1520 TO-220AC 200 15 110 10 1.05 35 Active
SDUR1530 TO-220AC 300 15 240 10 1.26 45 Active
SDUR1540 TO-220AC 400 15 140 10 1.25 45 Active
SDUR1560 TO-220AC 600 15 160 10 1.7 50 Active
SDUR1520CT TO-220AB 200 15 80 5 1.2 35 Active
SDUR1530CT TO-220AB 300 15 80 10 1.3 45 Active
SDUR1540CT TO-220AB 400 15 80 10 1.3 45 Active
SDUR1560CT TO-220AB 600 15 80 10 1.5 50 Active
SDURD1520 DPAK 200 15 110 10 1.05 35 Active
SDURD1520CT DPAK 200 15 80 5 1.2 35 Active
SDURD1530 DPAK 300 15 240 10 1.26 45 Active
SDURD1530CT DPAK 300 15 80 10 1.3 45 Active
SDURD1540 DPAK 400 15 140 10 1.25 45 Active
SDURD1540CT DPAK 400 15 80 10 1.3 45 Active
SDURD1560CT DPAK 600 15 80 10 1.5 50 Active
SDURD1560 DPAK 600 15 100 10 1.7 50 Active
SDURB1520 D2PAK 200 15 110 10 1.05 35 Active
SDURB1520CT D2PAK 200 15 80 5 1.2 35 Active
SDURB1530 D2PAK 300 15 240 10 1.26 45 Active
SDURB1530CT D2PAK 300 15 80 10 1.3 45 Active
SDURB1540 D2PAK 400 15 140 10 1.25 45 Active
SDURB1540CT D2PAK 400 15 80 10 1.3 45 Active
SDURB1560 D2PAK 600 15 160 10 1.7 50 Active
SDURB1560CT D2PAK 600 15 80 10 1.5 50 Active
SDURF1520 ITO-220AC 200 15 110 10 1.05 35 Active
SDURF1525 ITO-220AC 250 15 110 10 1 35 Active
SDURF1530 ITO-220AC 300 15 240 10 1.26 45 Active
SDURF1540 ITO-220AC 400 15 140 10 1.25 45 Active
SDURF1560 ITO-220AC 600 15 160 10 1.7 50 Active
SDURF1520CT ITO-220AB 200 15 80 5 1.2 35 Active
SDURF1520CTR ITO-220AB 200 15 80 5 1.2 35 Active
SDURF1530CT ITO-220AB 300 15 80 10 1.3 45 Active
SDURF1530CTR ITO-220AB 300 15 80 10 1.3 45 Active
SDURF1540CT ITO-220AB 400 15 80 10 1.3 45 Active
SDURF1540CTR ITO-220AB 400 15 80 10 1.3 45 Active
SDURF1560CT ITO-220AB 600 15 80 10 1.5 50 Active
SDURF1560CTR ITO-220AB 600 15 80 10 1.5 50 Active
SDUR1560W TO-247AC 600 15 160 10 1.7 50 Active
SDUR1620CT TO-220AB 200 16 80 5 1.2 35 Active
SDUR1630CT TO-220AB 300 16 80 10 1.3 45 Active
SDUR1640CT TO-220AB 400 16 80 10 1.3 45 Active
SDUR1660CT TO-220AB 600 16 80 5 1.5 50 Active
SDURB1620CT D2PAK 200 16 80 5 1.2 35 Active
SDURB1640CT D2PAK 400 16 80 10 1.3 45 Active
SDURB1660CT D2PAK 600 16 80 5 2.2 50 Active
SDURF1620CT ITO-220AB 200 16 80 5 1.2 35 Active
SDURF1620CTR ITO-220AB 200 16 80 5 1.2 35 Active
SDURF1630CT ITO-220AB 300 16 80 10 1.3 45 Active
SDURF1640CT ITO-220AB 400 16 80 10 1.3 45 Active
SDURF1640CTR ITO-220AB 400 16 80 10 1.3 45 Active
SDURF1660CT ITO-220AB 600 16 80 5 2.2 50 Active
SDUR2020 TO-220AC 200 20 160 15 1.15 35 Active
SDUR2030 TO-220AC 300 20 250 40 1.3 45 Active
SDUR2040 TO-220AC 400 20 150 15 1.51 45 Active
SDUR2060 TO-220AC 600 20 110 5 2 50 Active
SDUR2020CT TO-220AB 200 20 120 10 1.3 35 Active
SDUR2020CTA TO-220AB 200 20 96 10 1.05 35 Active
SDUR2030CT TO-220AB 300 20 125 30 1.3 45 Active
SDUR2040CT TO-220AB 400 20 125 20 1.3 45 Active
SDUR2060CT TO-220AB 600 20 120 10 2.2 50 Active
SDURD2020CT DPAK 200 20 80 5 1.2 35 Active
SDURD2060 DPAK 600 20 110 5 2 50 Active
SDURB2020 D2PAK 200 20 160 15 1.15 35 Active
SDURB2020CT D2PAK 200 20 100 15 1.15 35 Active
SDURB2030CT D2PAK 300 20 125 30 1.3 45 Active
SDURB2040 D2PAK 400 20 150 15 1.51 45 Active
SDURB2040CT D2PAK 400 20 125 30 1.3 45 Active
SDURB2060CT D2PAK 600 20 120 10 2.2 50 Active
SDURB2060 D2PAK 600 20 110 5 2 50 Active
SDURF2020 ITO-220AC 200 20 160 15 1.15 35 Active
SDURF2030 ITO-220AC 300 20 250 40 1.3 45 Active
SDURF2040 ITO-220AC 400 20 150 15 1.51 45 Active
SDURF2053 ITO-220AC 530 20 110 10 2 40 Active
SDURF2060 ITO-220AC 600 20 110 5 2 50 Active
SDURF2020CT ITO-220AB 200 20 125 15 1.15 35 Active
SDURF2020CTR ITO-220AB 200 20 125 15 1.15 35 Active
SDURF2030CT ITO-220AB 300 20 125 30 1.3 45 Active
SDURF2030CTR ITO-220AB 300 20 125 30 1.3 45 Active
SDURF2040CT ITO-220AB 400 20 125 10 1.3 45 Active
SDURF2040CTR ITO-220AB 400 20 125 10 1.3 45 Active
SDURF2060CTA ITO-220AB 600 20 120 10 2.2 35 Active
SDURF2060CTR ITO-220AB 600 20 120 10 2.2 50 Active
SDURF20H60CT ITO-220AB 600 20 100 10 2.2 35 Active
SDURF2060CT ITO-220AB 600 20 120 10 2.2 50 Active
SDUR2060W TO-247AC 600 20 250 5 1.7 50 Active

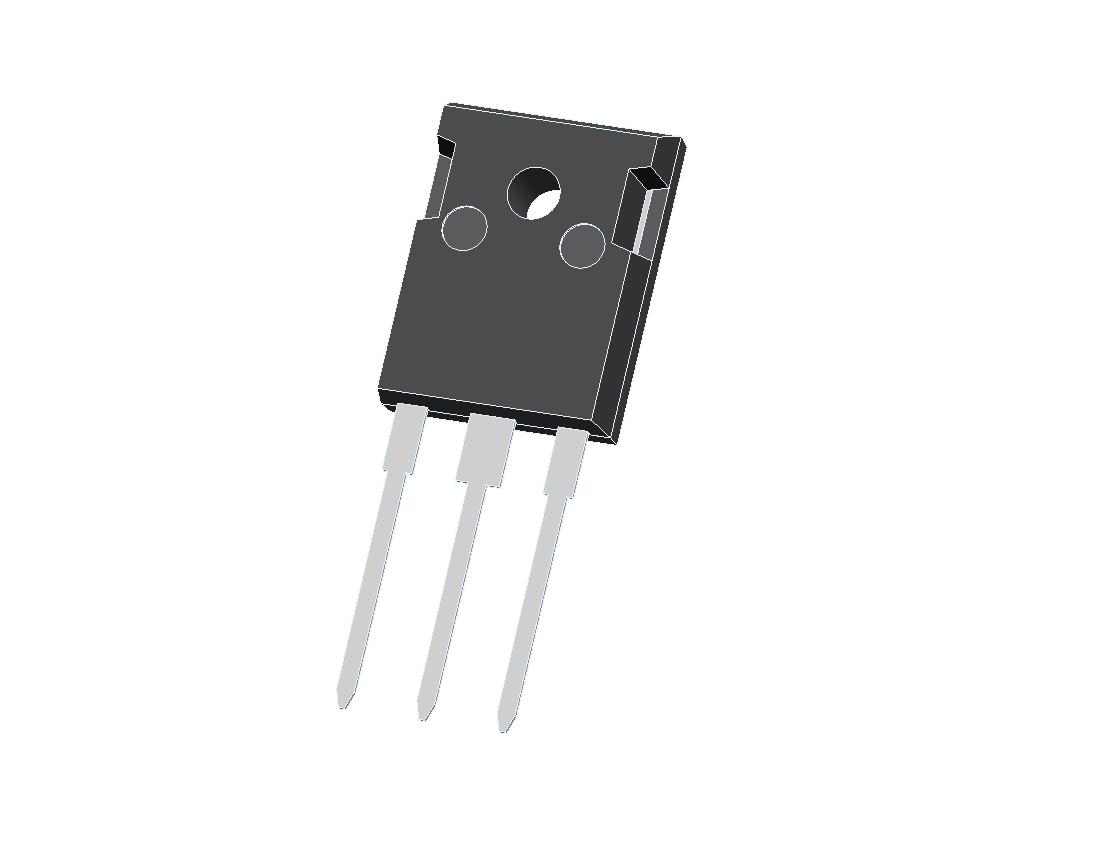

SDUR2020WT TO-247AD 200 20 120 10 1.05 35 Active
SDUR2040WT TO-247AD 400 20 125 10 1.5 35 Active
SDUR2060WT TO-247AD 600 20 120 10 2.2 50 Active
SDUR2060WTA TO-247AD 600 20 100 10 2.2 35 Active
SDUR2060WTA-HF TO-247AD 600 20 100 10 2.2 35 Active
SDUR3060 TO-220AC 600 30 300 250 1.8 50 Active
SDUR3020CT TO-220AB 200 30 200 10 1.05 35 Active
SDUR3030CT TO-220AB 300 30 110 10 1.25 45 Active
SDUR3040CT TO-220AB 400 30 200 10 1.25 45 Active
SDUR3060CT TO-220AB 600 30 160 100 2.03 50 Active
SDURB3020 D2PAK 200 30 250 10 1.2 45 Active
SDURB3020CT D2PAK 200 30 110 10 1.05 35 Active
SDURB3030CT D2PAK 300 30 110 10 1.25 45 Active
SDURB3040CT D2PAK 400 30 200 10 1.25 45 Active
SDURB3060CT D2PAK 600 30 160 100 2.03 50 Active
SDURB3060 D2PAK 600 30 300 1000 1.8 50 Active
SDURF3020CT ITO-220AB 200 30 110 10 1.05 35 Active
SDURF3020CTR ITO-220AB 200 30 110 10 1.05 35 Active
SDURF3030CT ITO-220AB 300 30 110 10 1.25 45 Active
SDURF3030CTR ITO-220AB 300 30 110 10 1.25 45 Active
SDURF3040CT ITO-220AB 400 30 200 10 1.45 45 Active
SDURF3040CTR ITO-220AB 400 30 200 10 1.45 45 Active
SDURF3060CT ITO-220AB 600 30 160 100 2.03 50 Active
SDURF3060CTR ITO-220AB 600 30 160 100 2.03 50 Active
SDURF3020 ITO-220AC 200 30 250 10 1.2 45 Active
SDUR3020W TO-247AC 200 30 250 10 1.2 45 Active
SDUR3030W TO-247AC 300 30 250 5 1.3 45 Active
SDUR3040W TO-247AC 400 30 250 5 1.41 45 Active
SDUR3060W TO-247AC 600 30 300 250 1.8 50 Active
SDUR3020WT TO-247AD 200 30 180 10 1.05 35 Active
SDUR3030WT TO-247AD 300 30 240 5 1.25 45 Active
SDUR3040WT TO-247AD 400 30 200 10 1.25 45 Active
SDUR3060WT TO-247AD 600 30 160 100 2.03 50 Active
SDUR6020W TO-247AC 200 60 650 40 1.08 50 Active
SDUR6030W TO-247AC 300 60 450 10 1.4 45 Active
SDUR6040W TO-247AC 400 60 450 10 1.47 45 Active
SDUR6060W TO-247AC 600 60 400 100 2 50 Active
SDUR6020WT TO-247AD 200 60 360 10 1.2 45 Active
SDUR6030WT TO-247AD 300 60 360 5 1.41 45 Active
SDUR6040WT TO-247AD 400 60 360 5 1.41 45 Active
SDUR6060WT TO-247AD 600 60 300 250 1.8 50 Active
SDUR8040WT TO-247AD 400 80 350 10 1.8 45 Active
SDURF1660CTR ITO-220AB 600 16 80 5 2.2 50 Active
SDURK2060 ITO-220AC-2L 600 20 160 100 2 50 Active
SDURK20Q60 ITO-220AC-2L 600 20 190 10 2 40 Active
SF204G DO-15 200 2 75 5 0.95 35 Active
SF206G DO-15 400 2 75 5 1.25 35 Active
SF208G DO-15 600 2 75 5 1.7 35 Active
SDURF1640 ITO-220AC 400 16 140 10 1.25 45 Active
SDUR3030 TO-220AC 300 30 250 5 1.3 45 Active
SDUR30Q60WT TO-247AD 600 30 160 10 2.0 40 Active
SF51G DO-201AD 50 5 150 5 0.95 35 Active
SF52G DO-201AD 100 5 150 5 0.95 35 Active
SF53G DO-201AD 150 5 150 5 0.95 35 Active
SF54G DO-201AD 200 5 150 5 1.3 35 Active
SF55G DO-201AD 300 5 150 5 1.3 35 Active
SF56G DO-201AD 400 5 150 5 1.7 35 Active
SF58G DO-201AD 500 5 150 5 1.7 35 Active
SDURK30Q60 ITO-220AC-2L 600 30 200 10 1.8 40 Active
SDURF10P100 ITO-220AC 1000 10 100 10 2.0 75 Active
SDURD860A DPAK 600 8 80 8 2.0 35 Active
1E1G R-1 50 1 25 5 0.95 35 Active
1E2G R-1 100 1 25 5 0.95 35 Active
1E3G R-1 150 1 25 5 0.95 35 Active
1E4G R-1 200 1 25 5 0.95 35 Active
1E5G R-1 300 1 25 5 1.25 35 Active
1E6G R-1 400 1 25 5 1.25 35 Active
1E8G R-1 600 1 25 5 1.7 35 Active
SDURF10P100B ITO-220AC 1000 10 100 10 1.8 100 Active
SDUR30Q60W TO-247AC 600 30 200 10 1.8 40 Active
SDUR30Q60 TO-220AC 600 30 200 10 1.8 40 Active
SDURF30Q60 ITO-220AC 600 30 200 10 1.8 40 Active
SDUR60Q60W TO-247AC 600 60 400 25 2.4 40 Active
SDUR15Q60 TO-220AC 600 15 160 20 2 40 Active
SDURF20Q60CT ITO-220AB 600 20 100 10 2.3 25 Active
SDURB30Q60 D2PAK 600 30 200 10 1.8 40 Active
SDUR60Q60WT TO-247AD 600 60 300 10 1.8 40 Active
SDURF15Q60 ITO-220AC 600 15 160 20 2 40 Active
SDURB15Q60 D2PAK 600 15 160 20 2 40 Active
SDUR15Q60W TO-247AC 600 15 160 20 2 40 Active
SDURK10Q60 ITO-220AC-2L 600 10 100 10 2.3 25 Active
SDURS30Q60WT TO-247AD 600 30 200 10 1.8 40 Active
SDUR16Q20CT TO-220AB 200 16 125 1 0.95 25 Active
SDUR8U120 TO-220AC 1200 8 80 100 3.2 50 Active
SDUR15U120 TO-220AC 1200 15 150 100 3.2 50 Active
SDURB3040 D2PAK 400 30 250 5 1.41 45 Active
SDUR3040 D2PAK 400 30 250 5 1.41 45 Active
SDUR8060W TO-247AC 600 80 400 500 1.8 60 Active
SDURB2020S D2PAK 200 20 160 15 1.15 35 Active
SDUR60U120W TO-247AC 1200 60 500 10 2.2 100 Active
SF11G DO-41 50 1 30 5 0.95 35 Active
SF12G DO-41 100 1 30 5 0.95 35 Active
SF13G DO-41 150 1 30 5 0.95 35 Active
SF14G DO-41 200 1 30 5 0.95 35 Active
SF15G DO-41 300 1 30 5 1.25 35 Active
SF16G DO-41 400 1 30 5 1.25 35 Active
SF18G DO-41 600 1 30 5 1.7 35 Active
ER3M SMC 1000 3 100 5 1.7 75 Active
SDURD320 DPAK 200 3 80 5 1.2 35 Active
SDURD330 DPAK 300 3 75 5 1.15 35 Active
SDURB2060A D2PAK 600 20 160 25 3 35 Active
SDURF2060A ITO-220AC 600 20 160 25 3 35 Active
ER3A SMC 50 3 100 5 0.95 35 Active
ER3B SMC 100 3 100 5 0.95 35 Active
ER3C SMC 150 3 100 5 0.95 35 Active
ER3D SMC 200 3 100 5 0.95 35 Active
ER3E SMC 300 3 100 5 1.25 35 Active
ER3G SMC 400 3 100 5 1.25 35 Active
ER3J SMC 600 3 100 5 1.7 35 Active
PFL1006 TO-220AC 600 10 125 5 1.5 50 Not for new designs
UA1D SMA 200 1 30 3 1 50 Active
HER101G DO-41 50 1 30 5 1 50 Active
HER102G DO-41 100 1 30 5 1 50 Active
HER103G DO-41 200 1 30 5 1 50 Active
HER104G DO-41 300 1 30 5 1.3 50 Active
HER105G DO-41 400 1 30 5 1.3 50 Active
HER106G DO-41 600 1 30 5 1.7 70 Active
HER107G DO-41 800 1 30 5 1.7 70 Active
HER108G DO-41 1000 1 30 5 1.7 70 Active
SDURB1020CT-A D2PAK 200 10 125 10 0.975 35 Active
SDURB2060-A D2PAK 600 20 110 5 2 50 Active
ER3DB SMB 200 3 100 2 0.95 35 Active
ER3GB SMB 400 3 100 5 1.25 35 Active
SDURD540A DPAK 400 5 50 30 1.3 35 Active
SDURK1060 ITO-220AC-2L 600 10 100 10 2.2 32 Active

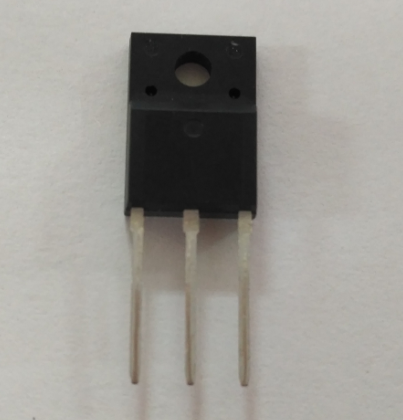

SDURL1060CT TO-220SF 600 10 60 5 1.55 50 Active
SDURL2060CT TO-220SF 600 20 100 10 2.2 50 Active
US1AL SOD-123FL 50 1 30 5 1 50 Active
US1BL SOD-123FL 100 1 30 5 1 50 Active
US1GL SOD-123FL 400 1 30 5 1.4 50 Active
US1JL SOD-123FL 600 1 30 5 1.7 75 Active
US1KL SOD-123FL 800 1 30 5 1.7 75 Active
US1ML SOD-123FL 1000 1 30 5 1.7 75 Active
SDUR60P60WT TO-247AD 600 60 200 150 1.7 50 Active
SES1D SMA 200 1 30 5 0.92 15 Not for new designs
US1A SMA 50 1 35 5 1 50 Active
US1B SMA 100 1 35 5 1 50 Active
US1D SMA 200 1 35 5 1 50 Active
US1G SMA 400 1 35 5 1.3 50 Active
US1J SMA 600 1 35 5 1.7 75 Active
US1K SMA 800 1 35 5 1.7 75 Active
SDURF3060 ITO-220AC 600 30 200 250 1.8 50 Active
SDURB520-A D2PAK 200 5 125 10 0.975 35 Active
SDURB530-A D2PAK 300 5 80 30 1.3 45 Active
SDURB540-A D2PAK 400 5 80 30 1.3 45 Active
SDURB560-A D2PAK 600 5 60 5 1.55 50 Active
SDURB820-A D2PAK 200 8 80 5 1.2 35 Active
SDURB830-A D2PAK 300 8 80 10 1.3 45 Active
SDURB840-A D2PAK 400 8 80 10 1.3 45 Active
SDURB860-A D2PAK 600 8 80 5 2.2 50 Active
SDURB860A-A D2PAK 600 8 80 8 2 35 Active
SDURB1020-A D2PAK 200 10 125 15 1.15 35 Active
SDURB1030-A D2PAK 300 10 150 30 1.3 35 Active
SDURB1030CT-A D2PAK 300 10 80 30 1.3 45 Active
SDURB1040-A D2PAK 400 10 125 10 1.3 45 Active
SDURB1040CT-A D2PAK 400 10 80 30 1.3 45 Active
SDURB1060-A D2PAK 600 10 100 10 2.2 32 Active
SDURB1060CT-A D2PAK 600 10 60 5 1.55 50 Active
SDURB1520-A D2PAK 200 15 110 10 1.05 35 Active
SDURB1520CT-A D2PAK 200 15 80 5 1.2 35 Active
SDURB1530-A D2PAK 300 15 240 10 1.26 45 Active
SDURB1530CT-A D2PAK 300 15 80 10 1.3 45 Active
SDURB1540-A D2PAK 400 15 140 10 1.25 45 Active
SDURB1540CT-A D2PAK 400 15 80 10 1.3 45 Active
SDURB1560-A D2PAK 600 15 160 10 1.7 50 Active
SDURB1560CT-A D2PAK 600 15 80 10 1.5 50 Active
SDURB1620CT-A D2PAK 200 16 80 5 1.2 35 Active
SDURB1640CT-A D2PAK 400 16 80 10 1.3 45 Active
SDURB1660CT-A D2PAK 600 16 80 5 2.2 50 Active
SDURB2020-A D2PAK 200 20 160 15 1.15 35 Active
SDURB2020CT-A D2PAK 200 20 100 15 1.15 35 Active
SDURB2030CT-A D2PAK 300 20 125 30 1.3 45 Active
SDURB2040-A D2PAK 400 20 150 15 1.51 45 Active
SDURB2040CT-A D2PAK 400 20 125 30 1.3 45 Active
SDURB2060CT-A D2PAK 600 20 120 10 2.2 50 Active
SDURB3020-A D2PAK 200 30 250 10 1.2 45 Active
SDURB3020CT-A D2PAK 200 30 110 10 1.05 35 Active
SDURB3030CT-A D2PAK 300 30 110 10 1.25 45 Active
SDURB3040CT-A D2PAK 400 30 200 10 1.25 45 Active
SDURB3060CT-A D2PAK 600 30 160 100 2.03 50 Active
SDURB3060-A D2PAK 600 30 300 1000 1.8 50 Active
US1DL SOD-123FL 200 1 30 5 1 50 Active
SDUR60H60W TO-247AC 600 60 450 10 2.2 40 Active
SDUR60FU60W TO-247AC 600 60 400 10 2.6 40 Active
SDUR60F60W TO-247AC 600 60 450 10 1.8 50 Active
SDURD1060S DPAK 600 10 70 10 1.55 50 Active
SDUR1060CTA TO-220AB 600 10 60 5 2 35 Active
SDURK15U60 ITO-220AC-2L 600 15 100 20 2 25 Active
SDUR30H120 TO-220AC 1200 30 200 10 3.5 50 Active
SDUR75H60W TO-247AC 600 75 400 10 2.75 40 Active
SDURK30F60 ITO-220AC-2L 600 30 150 10 2.2 40 Active
US2M SMA 1000 2 60 5 1.7 75 Active
UG2D DO-15 200 2 80 5 0.95 15 Active
SDUR15U120W TO-247AC 1200 15 150 50 2.8 50 Active
SDUR60Q80W TO-247AC 800 60 400 5 2.4 60 Active
SDUR60H120W TO-247AC 1200 60 500 10 3.2 75 Active
SDURD8U120 DPAK 1200 8 70 10 2.2 50 Active
SDUR30Q65 TO-220AC 650 30 300 15 1.8 40 Active
SDURB15U120 D2PAK 1200 15 150 50 2.8 50 Active
ES1B SMA 100 1 30 5 0.95 35 Active
SDUR30F60W TO-247AC 600 30 150 10 2.2 40
SDURK20F60 ITO-220AC-2L 600 20 180 10 2 40
SDUR60F60WT TO-247AD 600 60 150 10 2.2 40
SDURK20FU60 ITO-220AC-2L 600 20 130 10 2.5 30
SDUR75H65W TO-247AC 650 75 500 5 2.75 50
SDUR75H75W TO-247AC 750 75 400 5 3.6 50
SDUR30F120W TO-247AC 1200 30 200 10 3.2 60 Active
SDUR1620CTR TO-220AB 200 16 80 5 1.2 35 Active
SDUR1660CTR TO-220AB 600 16 80 5 1.5 50 Active
ESF21G DO-15 50 2 50 5 0.95 35 Active
ESF22G DO-15 100 2 50 5 0.95 35 Active
ESF23G DO-15 150 2 50 5 0.95 35 Active
ESF24G DO-15 200 2 50 5 0.95 35 Active
ESF25G DO-15 300 2 50 5 1.25 35 Active
ESF26G DO-15 400 2 50 5 1.25 35 Active
ESF28G DO-15 600 2 50 5 1.7 35 Active
SDURF10100 ITO-220AC 1000 10 40 50 2.5 100 Active
SDUR60H120WT TO-247AD 1200 60 200 10 3.5 600 Active
SDURB30FU60CT D2PAK 600 30 130 10 2.2 30 Active
SDURK30FC60 ITO-220AC-2L 600 30 250 5 2.8 30 Active
SDUR30FU120W TO-247AC 1200 30 250 10 3.6 60 Active
SDUR2020CTR TO-220AB 200 20 120 10 1.05 35 Active
SDURF60F60PT TO-3PF 600 60 150 10 2.2 40 Active
SDUR60H65W TO-247AC 650 60 250 10 2.3 55 Active
SDURF30FU60PT TO-3PF 600 30 130 10 2.2 30 Active
SDURI8FU60 TO-220-Isolation 600 8 100 100 2.3 Typ.14 Active
SDUR60FU60WT TO-247AD 600 60 270 10 2.4 40 Active
SDURK8U120 ITO-220AC-2L 1200 8 80 10 2.2 50 Active
SDUR80P65WT TO-247AD 650 80 320 5 1.7 50 Active
Top
