Part Number
|
Data Sheet
|
Spice Model
|
Package
|
Product Image
|
VRWM£¨V£©
|
Pd (mW)
|
IO (mA)
|
IR Max.@VR(¦ÌA)
|
VR (V)
|
VF Max. @IF (V)
|
IF (mA)
|
Trr Max. (ns)
|
Part Status
|
Packagefile
|
Purchase |
|
Cart | ||||||||||||||
1N4148WT | SOD-523 | 100 | 150 | 150 | 1 | 75 | 1.25 | 150 | 4 | Active | |||||
BAW56T | SOT-523 | 85 | 150 | 75 | 2 | 75 | 1.25 | 150 | 4 | Active | |||||
BAV70T | SOT-523 | 85 | 150 | 75 | 2 | 75 | 1.25 | 150 | 4 | Active | |||||
BAV99T | SOT-523 | 85 | 150 | 75 | 2 | 75 | 1.25 | 150 | 4 | Active | |||||
BAT54T | SOT-523 | 30 | 150 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54AT | SOT-523 | 30 | 150 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54CT | SOT-523 | 30 | 150 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54ST | SOT-523 | 30 | 150 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
1N4148WS | SOD-323 | 100 | 200 | 150 | 2.5 | 75 | 1 | 10 | 4 | Active | |||||
1N4448WS | SOD-323 | 100 | 200 | 250 | 2.5 | 75 | 0.72 | 5 | 4 | Active | |||||
BAV19WS | SOD-323 | 120 | 200 | 200 | 0.1 | 100 | 1 | 100 | 50 | Active | |||||
BAV20WS | SOD-323 | 200 | 200 | 200 | 0.1 | 150 | 1 | 100 | 50 | Active | |||||
BAV21WS | SOD-323 | 250 | 200 | 200 | 0.1 | 200 | 1 | 100 | 50 | Active | |||||
BAT54WS | SOD-323 | 30 | 200 | 200 | 2 | 25 | 0.32 | 1 | 5 | Active | |||||
SD103CWS | SOD-323 | 20 | 200 | 350 | 5 | 20 | 0.6 | 200 | Active | ||||||
SD103BWS | SOD-323 | 30 | 200 | 350 | 5 | 30 | 0.6 | 200 | Active | ||||||
SD103AWS | SOD-323 | 40 | 200 | 350 | 5 | 40 | 0.6 | 200 | Active | ||||||
BAT54 | SOT-23 | 30 | 200 | 200 | 2 | 25 | 1.0 | 100 | 5 | Active | |||||
BAT54A | SOT-23 | 30 | 200 | 200 | 2 | 25 | 1.0 | 100 | 5 | Active | |||||
BAT54C | SOT-23 | 30 | 200 | 200 | 2 | 25 | 1.0 | 100 | 5 | Active | |||||
BAT54S | SOT-23 | 30 | 200 | 200 | 2 | 25 | 1.0 | 100 | 5 | Active | |||||
BAV16W | SOD-123 | 75 | 400 | 150 | 1 | 75 | 0.855 | 10 | 6 | Active | |||||
BAV70 | SOT-23 | 85 | 225 | 200 | 2.5 | 75 | 1 | 50 | 6 | Active | |||||
BAV99 | SOT-23 | 85 | 225 | 200 | 2.5 | 75 | 0.855 | 10 | 6 | Active | |||||
BAS16 | SOT-23 | 100 | 350 | 200 | 1 | 75 | 0.855 | 10 | 6 | Active | |||||
MMBD4148 | SOT-23 | 100 | 350 | 150 | 2.5 | 75 | 0.855 | 10 | 4 | Active | |||||
BAS21 | SOT-23 | 250 | 225 | 200 | 0.1 | 200 | 1 | 100 | 50 | Active | |||||
SD103CW | SOD-123 | 20 | 400 | 350 | 5 | 20 | 0.6 | 200 | Active | ||||||
SD103BW | SOD-123 | 30 | 400 | 350 | 5 | 30 | 0.6 | 200 | Active | ||||||
SD103AW | SOD-123 | 40 | 400 | 350 | 5 | 40 | 0.6 | 200 | Active | ||||||
1N4148W | SOD-123 | 75 | 400 | 250 | 2.5 | 75 | 1 | 100 | 4 | Active | |||||
BAV19W | SOD-123 | 120 | 500 | 200 | 0.1 | 100 | 1 | 100 | 50 | Active | |||||
BAV20W | SOD-123 | 200 | 500 | 200 | 0.15 | 150 | 1 | 100 | 50 | Active | |||||
BAV21W | SOD-123 | 250 | 500 | 200 | 0.2 | 200 | 1 | 100 | 50 | Active | |||||
MBR0530 | SOD-123 | 30 | 410 | 500 | 130 | 30 | 0.43 | 500 | Active | ||||||
MBR0540 | SOD-123 | 40 | 410 | 500 | 20 | 40 | 0.51 | 500 | Active | ||||||
MBR0520L | SOD-123 | 20 | 410 | 500 | 250 | 20 | 0.385 | 500 | Active | ||||||
1N4448W | SOD-123 | 100 | 500 | 250 | 5 | 75 | 0.72 | 5 | 4 | Active | |||||

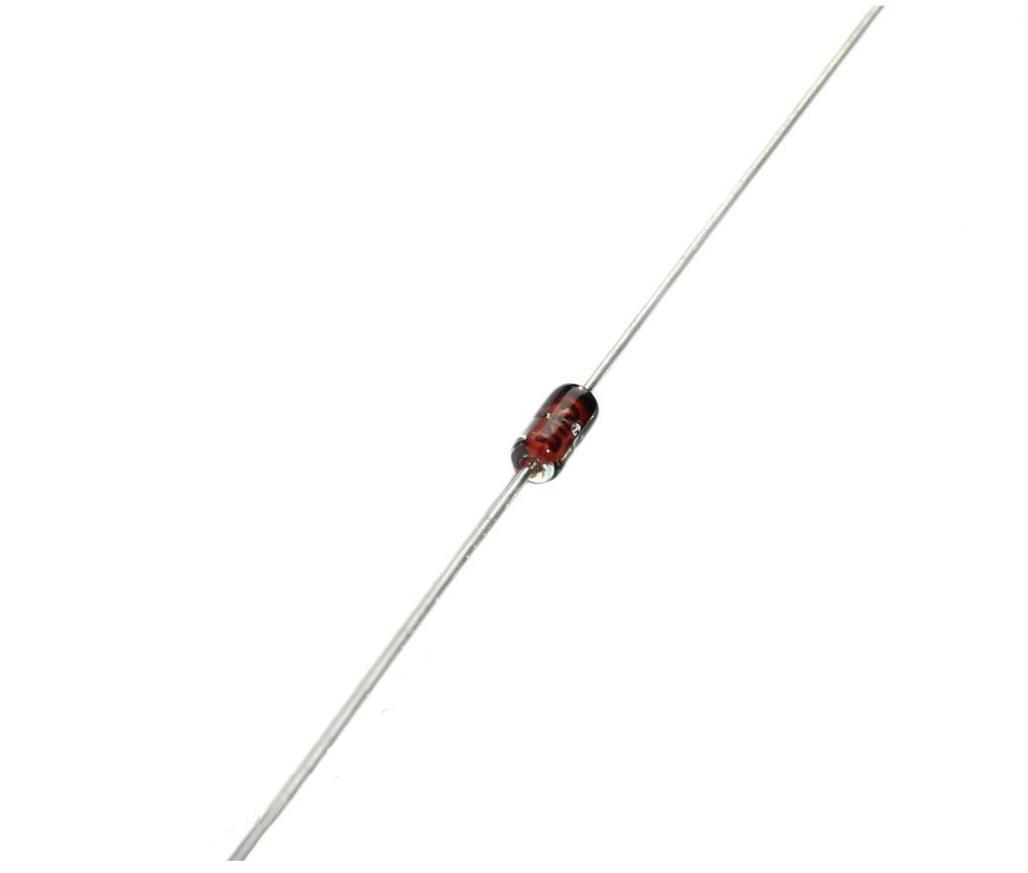

1N4148 | DO-35 | 100 | 500 | 150 | 5 | 75 | 1 | 10 | 4 | Active | |||||
BAT43W | SOD-123 | 30 | 500 | 200 | 0.5 | 25 | 1 | 200 | Active | ||||||
RB551M3-30 | SOD-323F | 30 | 200 | 500 | 100 | 20 | 0.47 | 500 | Active | ||||||

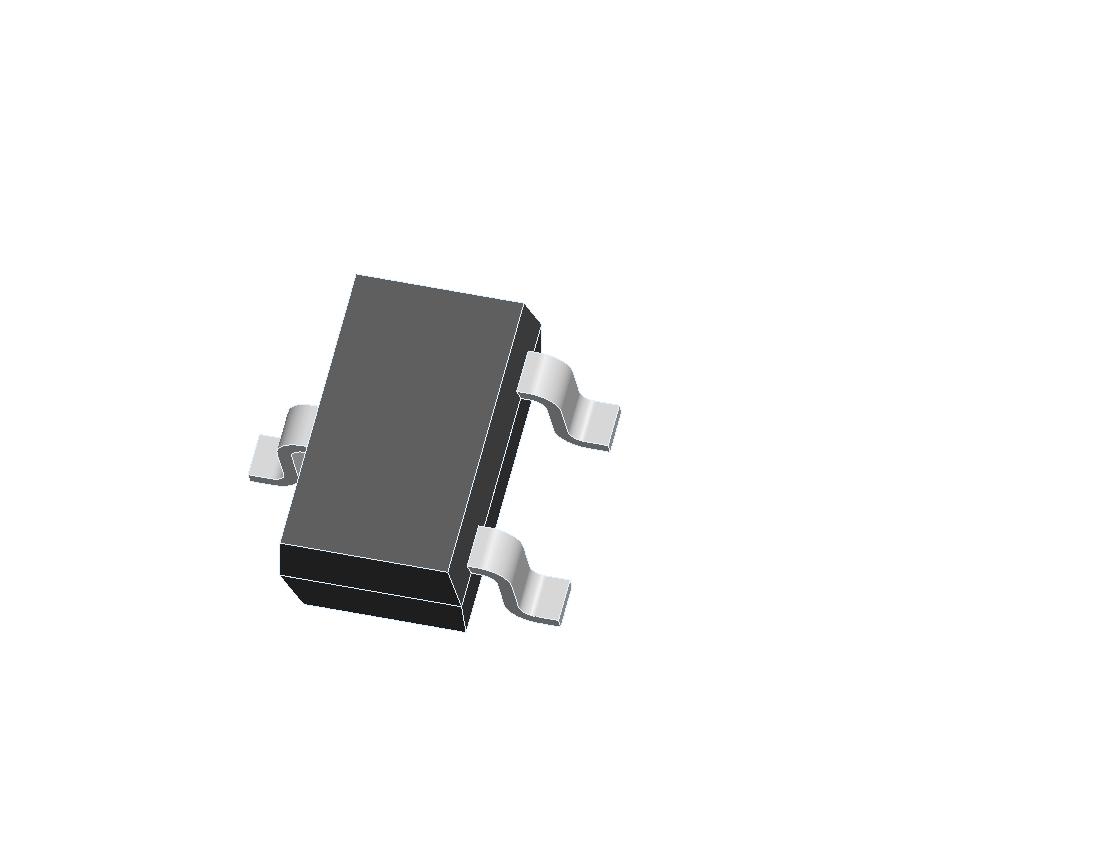

BAT54W | SOT-323 | 30 | 200 | 200 | 2 | 30 | 1 | 100 | 5 | Active | |||||
BAT54AW | SOT-323 | 30 | 200 | 200 | 2 | 30 | 1 | 100 | 5 | Active | |||||
BAT54CW | SOT-323 | 30 | 200 | 200 | 2 | 30 | 1 | 100 | 5 | Active | |||||
BAT54SW | SOT-323 | 30 | 200 | 200 | 2 | 30 | 1 | 100 | 5 | Active | |||||
BAV70W | SOT-323 | 85 | 200 | 150 | 2.5 | 75 | 1.25 | 150 | 4 | Active | |||||
BAS19W | SOT-323 | 120 | 200 | 200 | 0.1 | 100 | 1 | 100 | 100 | Active | |||||
1SS388 | SOD-523 | 40 | 150 | 100 | 5 | 10 | 0.6 | 50 | Active | ||||||
RB521M5 | SOD-523 | 30 | - | 100 | 50 | 30 | 0.4 | 20 | Active | ||||||
BAS19 | SOT-23 | 120 | 225 | 200 | 0.1 | 100 | 1 | 100 | 50 | Active | |||||
1SS355 | SOD-323F | 80 | 200 | 150 | 0.1 | 80 | 1.2 | 200 | 4 | Active | |||||
SD103BWSA | SOD-323 | 30 | 250 | 100 | 10 | 25 | 0.8 | 100 | Active | ||||||
MMBD4150 | SOT-23 | 50 | 350 | 250 | 0.1 | 50 | 1.0 | 200 | 4 | Active | |||||
MMBD914 | SOT-23 | 100 | 350 | 150 | 0.025 | 20 | 0.855 | 10 | 2 | Active | |||||
SSTX404S | SOT-23 | 40 | 350 | 600 | 0.5 | 40 | 1.2 | 100 | Active | ||||||
SSTX304S | SOT-23 | 60 | 350 | 600 | 0.5 | 30 | 1.2 | 100 | Active | ||||||
RB520S-40 | SOD-523 | 40 | 200 | 200 | 1 | 10 | 0.6 | 200 | Active | ||||||
SFC44148A | WLCSP | 100 | 450 | 300 | 0.5 | 75 | 1.0 | 0.01 | 30 | Not for new designs | |||||
BAV99W | SOT-323 | 85 | 200 | 150 | 2.5 | 75 | 1.0 | 50 | 6 | Active | |||||
SMBD001030 | SOT-23 | 30 | 200 | 10 | 0.2 | 25 | 0.7 | 10 | Active | ||||||
BAT54DF | DFN2015-6L | 30 | 410 | 100 | 1 | 30 | 0.3 | 0.5 | Active | ||||||
MMBD4148CC | SOT-23 | 100 | 350 | 200 | 5 | 75 | 1 | 10 | 4 | Active | |||||
BAT54W-A | SOT-323 | 30 | 200 | 200 | 2 | 30 | 1 | 100 | 5 | Active | |||||
BAT54AW-A | SOT-323 | 30 | 200 | 200 | 2 | 30 | 1 | 100 | 5 | Active | |||||
BAT54CW-A | SOT-323 | 30 | 200 | 200 | 2 | 30 | 1 | 100 | 5 | Active | |||||
BAT54SW-A | SOT-323 | 30 | 200 | 200 | 2 | 30 | 1 | 100 | 5 | Active | |||||
MBR0540-A | SOD-123 | 40 | 410 | 500 | 20 | 40 | 0.51 | 500 | Active | ||||||
BAV99W-A | SOT-323 | 85 | 200 | 150 | 2.5 | 75 | 1 | 50 | 6 | Active | |||||
RB521M5-A | SOD-523 | 30 | ¡ª | 100 | 50 | 30 | 0.4 | 20 | ¡ª | Active | |||||
MMBD4448W | SOT-23 | 100 | 200 | 250 | 2.5 | 75 | 1.25 | 150 | 4 | Active | |||||

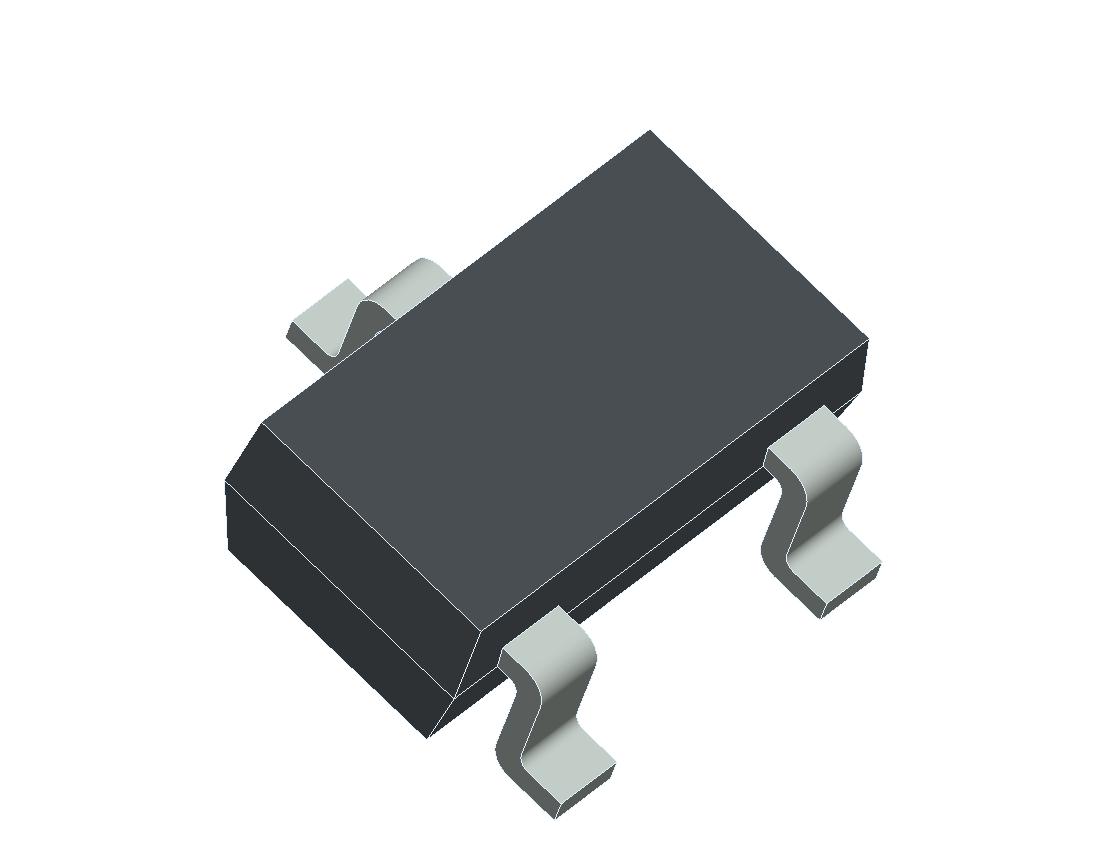

BAT54M-A | SOT-723 | 30 | 150 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54M5 | SOD-523 | 30 | 200 | 200 | 2 | 25 | 0.8 | 100 | 10 | Active | |||||
BAS20 | SOT-23 | 200 | 225 | 200 | 0.1 | 150 | 1 | 100 | 50 | Active | |||||
BAW56 | SOT-23 | 75 | 350 | 150 | 2.5 | 75 | 1 | 50 | 6 | Active | |||||
1N4148WT-A | SOD-523 | 100 | 150 | 150 | 1 | 75 | 1.25 | 150 | 4 | Active | |||||
BAS16-A | SOT-23 | 100 | 350 | 200 | 1 | 75 | 0.855 | 10 | 6 | Active | |||||
BAT54-A | SOT-23 | 30 | 200 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54A-A | SOT-23 | 30 | 200 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54C-A | SOT-23 | 30 | 200 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54S-A | SOT-23 | 30 | 200 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54M5-A | SOD-523 | 30 | 200 | 200 | 2 | 25 | 0.8 | 100 | 10 | Active | |||||
BAT54M5 | SOD-523 | 30 | 200 | 200 | 2 | 25 | 0.8 | 100 | 10 | Active | |||||
BAT54M-A | SOT-723 | 30 | 150 | 200 | 2 | 25 | 1 | 100 | 5 | Active | |||||
BAT54WS-A | SOD-323 | 30 | 200 | 100 | 2 | 25 | 0.32 | 1 | 5 | Active | |||||
BAV19WS-A | SOD-323 | 120 | 200 | 200 | 0.1 | 100 | 1 | 100 | 50 | Active | |||||
BAV20WS-A | SOD-323 | 200 | 200 | 200 | 0.1 | 150 | 1 | 100 | 50 | Active | |||||
BAV21WS-A | SOD-323 | 250 | 200 | 200 | 0.1 | 200 | 1 | 100 | 50 | Active | |||||
BAV70-A | SOT-23 | 85 | 225 | 200 | 2.5 | 75 | 1 | 50 | 6 | Active | |||||
BAV99-A | SOT-23 | 85 | 225 | 200 | 2.5 | 75 | 0.855 | 10 | 6 | Active | |||||
MMBD4148-A | SOT-23 | 100 | 350 | 200 | 2.5 | 75 | 1 | 10 | 4 | Active | |||||
1N4148WS-A | SOD-323 | 100 | 200 | 150 | 2.5 | 75 | 1 | 10 | 4 | Active |
