TVS Arrays from SMC Diode Solutions
Power:170W-500W
VRVM:3V-36V
Package:SO-8,SO-14,SO-16,SOD-323,SOD-523,SOT-23,SOT-143
Part Number
Data Sheet
Spice Model
Package
Product Image
Pd (8/20μs)(W)
VWM (V)
VBR Min. @1mA (V)
VC Max.@1A (V)
IR Max.@VWM (μA)
Cj Max. (f=1MHz) @0V (pF)
а(VBR) Max.(mv/°C)
Part Status
Packagefile
Purchase
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter

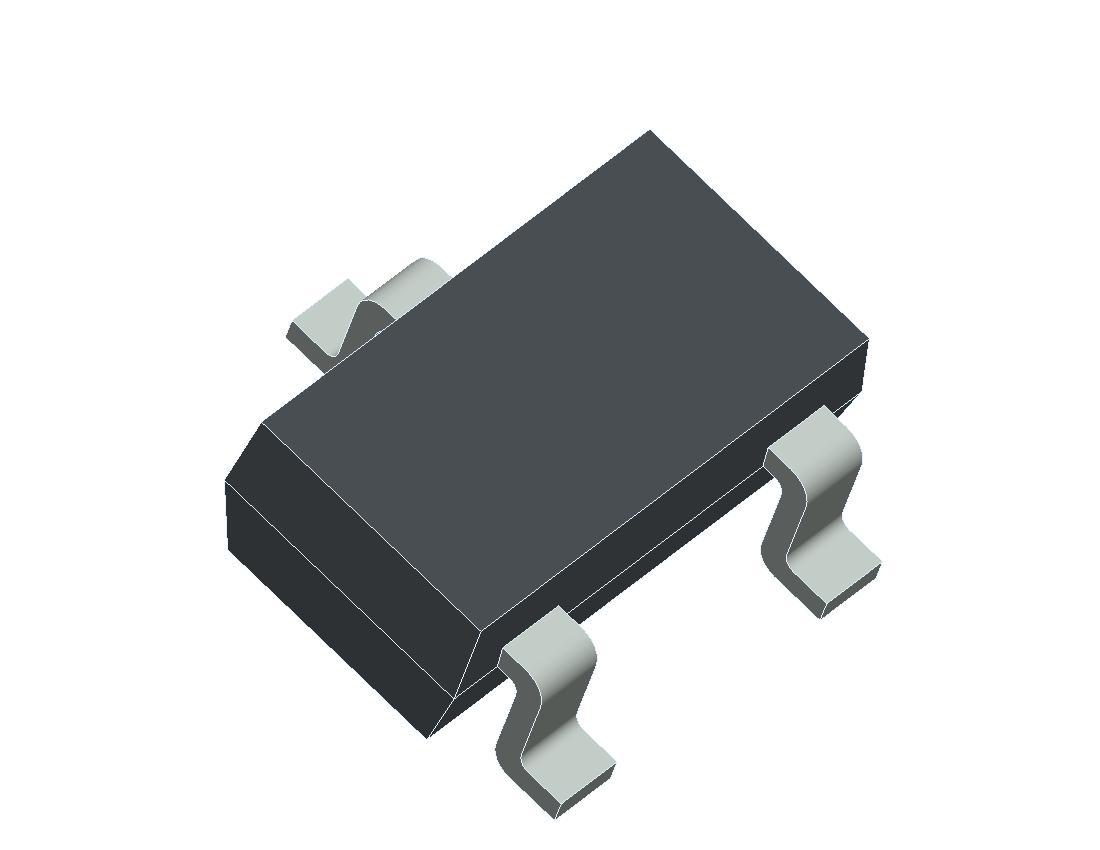

S23LCC05 SOT-23 350 5 6 9.8 5 3 - Active
S23CC03 SOT-23 350 3.3 5 8 5 200 - Active
S23CC05 SOT-23 350 5 6.8 10 1 150 - Active
S23CC12 SOT-23 350 12 13.8 20 0.1 60 - Active
S23CC15 SOT-23 350 15 17.1 25 0.1 50 - Active
S23CC24 SOT-23 350 24 26.2 40 0.1 30 - Active
CESD15VD5 SOD-523 175 15 16.7 - 1 48 - Active
CESD24VD5 SOD-523 190 24 26.7 - 1 36 - Active
S23LCC05-A SOT-23 350 5 6 9.8 5 3 - Active
S23CC03-A SOT-23 350 3.3 5 8 5 200 - Active
S23CC05-A SOT-23 350 5 6.8 10 1 150 - Active
S23CC12-A SOT-23 350 12 13.8 20 0.1 60 - Active
S23CC15-A SOT-23 350 15 17.1 25 0.1 50 - Active
S23CC24-A SOT-23 350 24 26.2 40 0.1 30 - Active
SM712-A SOT-23 7V, 12V 7.5V, 13.3V 1uA, 20uA 75 Active

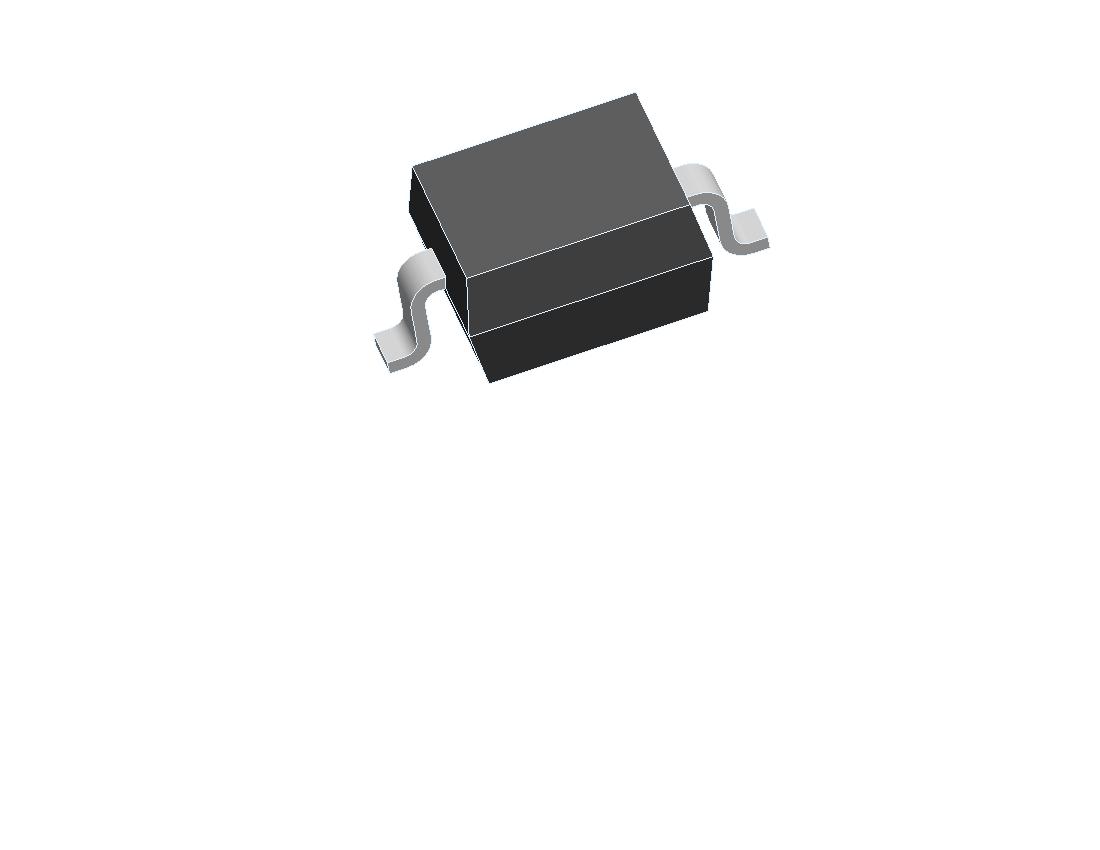

SD05 SOD-323 350 5 6 _ 10 350 _ Active
SD12 SOD-323 350 12 13.3 _ 1 150 _ Active
SD15 SOD-323 350 15 16.7 _ 1 130 _ Active
SD18 SOD-323 350 18 20 29 1 120 _ Active
SD24 SOD-323 350 24 26.7 43 1 100 _ Active
SD36 SOD-323 350 36 40 52 1 50 _ Active
SD05-A SOD-323 350 5 6 _ 10 350 _ Active
SD12-A SOD-323 350 12 13.3 _ 1 150 _ Active
SD15-A SOD-323 350 15 16.7 _ 1 130 _ Active
SD18-A SOD-323 350 18 20 29 1 120 _ Active
SD24-A SOD-323 350 24 26.7 43 1 100 _ Active
SD36-A SOD-323 350 36 40 52 1 50 _ Active
SD05C SOD-323 350 5 6 _ 10 200 _ Active
SD12C SOD-323 350 12 13.3 _ 1 100 _ Active
SD15C SOD-323 350 15 16.7 _ 1 75 _ Active
SD18C SOD-323 350 18 20 29 1 60 _ Active
SD24C SOD-323 350 24 26.7 43 1 50 _ Active
SD36C SOD-323 350 36 40 52 1 30 _ Active
SD05C-A SOD-323 350 5 6 _ 10 200 _ Active
SD12C-A SOD-323 350 12 13.3 _ 1 100 _ Active
SD15C-A SOD-323 350 15 16.7 _ 1 75 _ Active
SD18C-A SOD-323 350 18 20 29 1 60 _ Active
SD24C-A SOD-323 350 24 26.7 43 1 50 _ Active
SD36C-A SOD-323 350 36 40 52 1 30 _ Active
SD03LC SOD-323 350 3 4 7 5 8 _ Active
SD05LC SOD-323 350 5 6 9.8 5 8 _ Active
SD08LC SOD-323 350 8 8.5 13.4 2 8 _ Active
SD12LC SOD-323 350 12 13.3 19 1 8 _ Active
SD15LC SOD-323 350 15 16.7 24 1 8 _ Active
SD18LC SOD-323 350 18 20 29 1 8 _ Active
SD24LC SOD-323 350 24 26 43 1 8 _ Active
SD03LC-A SOD-323 350 3 4 7 5 8 _ Active
SD05LC-A SOD-323 350 5 6 9.8 5 8 _ Active
SD08LC-A SOD-323 350 8 8.5 13.4 2 8 _ Active
SD12LC-A SOD-323 350 12 13.3 19 1 8 _ Active
SD15LC-A SOD-323 350 15 16.7 24 1 8 _ Active
SD18LC-A SOD-323 350 18 20 29 1 8 _ Active
SD24LC-A SOD-323 350 24 26 43 1 8 _ Active
SD03LCC SOD-323 350 3 4 7 5 8 _ Active
SD05LCC SOD-323 350 5 6 9.8 5 8 _ Active
SD08LCC SOD-323 350 8 8.5 13.4 2 8 _ Active
SD12LCC SOD-323 350 12 13.3 19 1 8 _ Active
SD15LCC SOD-323 350 15 16.7 24 1 8 _ Active
SD18LCC SOD-323 350 18 20 29 1 8 _ Active
SD24LCC SOD-323 350 24 26 43 1 8 _ Active
SD03LCC-A SOD-323 350 3 4 7 5 8 _ Active
SD05LCC-A SOD-323 350 5 6 9.8 5 8 _ Active
SD08LCC-A SOD-323 350 8 8.5 13.4 2 8 _ Active
SD12LCC-A SOD-323 350 12 13.3 19 1 8 _ Active
SD15LCC-A SOD-323 350 15 16.7 24 1 8 _ Active
SD18LCC-A SOD-323 350 18 20 29 1 8 _ Active
SD24LCC-A SOD-323 350 24 26 43 1 8 _ Active
SMDA03 SO-8 300 3.3 4 7 200 800 - Active
SMDA05 SO-8 300 5 6 9.8 20 600 - Active
SMDA12 SO-8 300 12 13.3 19 1 185 - Active
SMDA15 SO-8 300 15 16.7 24 1 140 - Active
SMDA24 SO-8 300 24 26.7 43 1 90 - Active

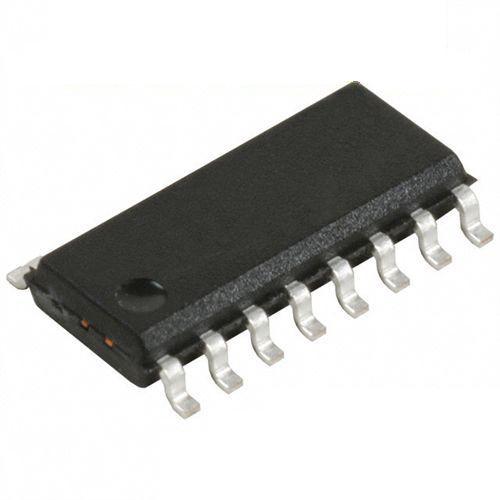

S1603-8 SO-16 300 3.3 4 7 200 800 -3 Active
S1605-8 SO-16 300 5 6 9.8 20 600 3 Active
S1612-8 SO-16 300 12 13.3 19 1 185 10 Active
S1615-8 SO-16 300 15 16.7 24 1 140 13 Active
S1624-8 SO-16 300 24 26.7 43 1 90 30 Active
S16C03-8 SO-16 300 3.3 4 7 200 425 -5 Active
S16C05-8 SO-16 300 5 6 9.8 40 310 1 Active
S16C12-8 SO-16 300 12 13.3 19 1 105 8 Active
S16C15-8 SO-16 300 15 16.7 24 1 80 11 Active
S16C24-8 SO-16 300 24 26.7 43 1 50 28 Active
S16LC03-8 SO-16 300 3.3 4 7 200 25 -5 Active
S16LC05-8 SO-16 300 5 6 9.8 20 25 1 Active
S16LC12-8 SO-16 300 12 13.3 19 1 25 8 Active
S16LC15-8 SO-16 300 15 16.7 24 1 25 11 Active
S16LC24-8 SO-16 300 24 26.7 43 1 25 28 Active
S16LCC03-8 SO-16 300 3.3 4 7 200 25 -5 Active
S16LCC05-8 SO-16 300 5 6 9.8 20 25 1 Active
S16LCC12-8 SO-16 300 12 13.3 19 1 25 8 Active
S16LCC15-8 SO-16 300 15 16.7 24 1 25 11 Active
S16LCC24-8 SO-16 300 24 26.7 43 1 25 28 Active
S23C03 SOT-23 300 3.3 4 8 200 600 - Active
S23C05 SOT-23 300 5 6 10.8 20 400 - Active
S23C12 SOT-23 300 12 13.3 19 0.1 160 - Active
S23C15 SOT-23 300 15 16.7 24 0.1 130 - Active
S23C24 SOT-23 300 24 26.7 44 0.1 80 - Active
S23C36 SOT-23 300 36 40 60 0.1 50 - Active
S23LC03 SOT-23 300 3.3 4 8 200 3 -5 Active
S23LC05 SOT-23 300 5 6 10.8 20 3 3 Active
S23LC12 SOT-23 300 12 13.3 19 1 3 10 Active
S23LC15 SOT-23 300 15 16.7 25 1 3 13 Active
S23LC24 SOT-23 300 24 26.7 44 1 3 20 Active
SD32303 SOD-323 300 3.3 4 7 200 800 -3 Active
SD32305 SOD-323 300 5 6 9.8 20 600 3 Active
SD32312 SOD-323 300 12 13.3 19 1 185 10 Active
SD32315 SOD-323 300 15 16.7 24 1 140 13 Active
SD32324 SOD-323 300 24 26.7 43 1 90 30 Active
S43LCC0403 SOT-143 500 3.3 4 8 200 15 -5 Active
S43LCC0405 SOT-143 500 5 6 10.8 40 15 1 Active
S43LCC0412 SOT-143 500 12 13.3 19 1 15 8 Active
S43LCC0415 SOT-143 500 15 16.7 24 1 15 11 Active
S43LCC0424 SOT-143 500 24 26.7 43 1 15 28 Active
S16LC36-8 SO-16 300 36 40 51 1 25 - Active
S23LC36 SOT-23 300 36 40 60 1 3 - Active
S8ULC03-2 SO-8 500 3.3 4 8 200 3 -5 Active
S8ULC05-2 SO-8 500 5 6 10.8 20 3 1 Active
S8ULC12-2 SO-8 500 12 13.3 19 1 3 8 Active
S8ULC15-2 SO-8 500 15 16.7 25 1 3 11 Active
S8ULC24-2 SO-8 500 24 26.7 44 1 3 28 Active
S8ULC36-2 SO-8 500 36 40 60 75 1 3 Active
S8ULC36-2-A SO-8 500 36 40 60 75 1 3 Active
S8ULCC03-2 SO-8 500 3.3 4 8 200 5 -5 Active
S8ULCC05-2 SO-8 500 5 6 9.8 20 5 1 Active
S8ULCC12-2 SO-8 500 12 13.3 19 1 5 8 Active
S8ULCC15-2 SO-8 500 15 16.7 24 1 5 11 Active
S8ULCC24-2 SO-8 500 24 26.7 43 1 5 28 Active
S8ULCC36-2 SO-8 500 36 40 51 75 1 15 Active
S8ULCC36-2-A SO-8 500 36 40 51 75 1 15 Active
SMDA03LCC SO-8 300 3.3 4 7 200 15 -5 Active
SMDA05LCC SO-8 300 5 6 9.8 20 15 1 Active
SMDA12LCC SO-8 300 12 13.3 19 1 15 8 Active
SMDA15LCC SO-8 300 15 16.7 24 1 15 11 Active
SMDA24LCC SO-8 300 24 26.7 43 1 15 28 Active
SMDA36LCC SO-8 300 36 40 60 75 1 15 Active
SMDA36LCC-A SO-8 300 36 40 60 75 1 15 Active
SMDB03 SO-8 500 3.3 4 7 200 800 -3 Active
SMDB05 SO-8 500 5 6 9.8 20 600 3 Active
SMDB12 SO-8 500 12 13.3 19 1 185 10 Active
SMDB15 SO-8 500 15 16.7 24 1 140 13 Active
SMDB24 SO-8 500 24 26.7 43 1 90 30 Active
SMDB36 SO-8 500 36 40 51 75 1 80 Active
SMDB36-A SO-8 500 36 40 51 75 1 80 Active
SMDB03C SO-8 500 3.3 4 7 200 400 -5 Active
SMDB05C SO-8 500 5 6 9.8 40 300 1 Active
SMDB12C SO-8 500 12 13.3 19 1 94 8 Active
SMDB15C SO-8 500 15 16.7 24 1 70 11 Active
SMDB24C SO-8 500 24 26.7 43 1 45 28 Active
SMDB36C SO-8 500 36 40 51 75 1 40 Active
SMDB36C-A SO-8 500 36 40 51 75 1 40 Active
SMDB03LCC SO-8 500 3.3 4 7 200 15 -5 Active
SMDB05LCC SO-8 500 5 6 9.8 20 15 1 Active
SMDB12LCC SO-8 500 12 13.3 19 1 15 8 Active
SMDB15LCC SO-8 500 15 16.7 24 1 15 11 Active
SMDB24LCC SO-8 500 24 26.7 43 1 15 28 Active
SMDB36LCC SO-8 500 36 40 51 75 1 15 Active
SMDB36LCC-A SO-8 500 36 40 51 75 1 15 Active
LCDA03 SO-8 300 3.3 4 7 200 5 -5 Active
LCDA05 SO-8 300 5 6 9.8 20 5 1 Active
LCDA12 SO-8 300 12 13.3 19 1 5 8 Active
LCDA15 SO-8 300 15 16.7 24 1 5 11 Active
LCDA24 SO-8 300 24 26.7 43 1 5 28 Active
LCDA36 SO-8 300 36 40 60 1 5 _ Active
LCDA03-A SO-8 300 3.3 4 7 200 5 -5 Active
LCDA05-A SO-8 300 5 6 9.8 20 5 1 Active
LCDA12-A SO-8 300 12 13.3 19 1 5 8 Active
LCDA15-A SO-8 300 15 16.7 24 1 5 11 Active
LCDA24-A SO-8 300 24 26.7 43 1 5 28 Active
LCDA36-A SO-8 300 36 40 60 1 5 _ Active
SMDA03C SO-8 300 3.3 4 7 200 400 -5 Active
SMDA05C SO-8 300 5 6 9.8 40 300 1 Active
SMDA12C SO-8 300 12 13.3 19 1 94 8 Active
SMDA15C SO-8 300 15 16.7 24 1 70 11 Active
SMDA24C SO-8 300 24 26.7 43 1 45 28 Active
SMDA36C SO-8 300 36 40 60 1 25 43 Active
SMDA03C-A SO-8 300 3.3 4 7 200 400 -5 Active
SMDA05C-A SO-8 300 5 6 9.8 40 300 1 Active
SMDA12C-A SO-8 300 12 13.3 19 1 94 8 Active
SMDA15C-A SO-8 300 15 16.7 24 1 70 11 Active
SMDA24C-A SO-8 300 24 26.7 43 1 45 28 Active
SMDA36C-A SO-8 300 36 40 60 1 25 43 Active
SM712 SOT-23 12V, 7V 13.3V, 7.5V 1uA, 20uA 75 Active
SMDA03-7 SO-8 300 3.3 4 7 200 300 -5 Active
SMDA05-7 SO-8 300 5 6 9.8 40 200 1 Active
SMDA12-7 SO-8 300 12 13.3 19 1 75 8 Active
SMDA15-7 SO-8 300 15 16.7 24 1 70 11 Active
SMDA24-7 SO-8 300 24 26.7 43 1 35 28 Active
SMDA36-7 SO-8 300 36 40 60 1 25 43 Active
SMDA03C-4 SO-8 300 3.3 4 7 200 300 -5 Active
SMDA05C-4 SO-8 300 5 6 9.8 40 200 3 Active
SMDA12C-4 SO-8 300 12 13.3 19 1 185 10 Active
SMDA15C-4 SO-8 300 15 16.7 24 1 140 13 Active
SMDA24C-4 SO-8 300 24 26.7 43 1 90 30 Active
SMDA36C-4 SO-8 300 36 40 60 1 25 _ Active
SMDA03C-4-2 SO-8 300 3.3 4 7 200 300 -5 Active
SMDA05C-4-2 SO-8 300 5 6 9.8 40 200 1 Active
SMDA12C-4-2 SO-8 300 12 13.3 19 1 75 8 Active
SMDA15C-4-2 SO-8 300 15 16.7 24 1 50 11 Active
SMDA24C-4-2 SO-8 300 24 26.7 43 1 35 28 Active
SMDA36C-4-2 SO-8 300 36 40 60 1 25 _ Active
SMDA03C-5 SO-8 300 3.3 4 7 200 300 -5 Active
SMDA05C-5 SO-8 300 5 6 9.8 40 200 3 Active
SMDA12C-5 SO-8 300 12 13.3 19 1 75 10 Active
SMDA15C-5 SO-8 300 15 16.7 24 1 50 13 Active
SMDA24C-5 SO-8 300 24 26.7 43 1 35 30 Active
SMDA36C-5 SO-8 300 36 40 60 1 25 43 Active
SMDA03-6 SO-8 300 3.3 4 7 200 800 -3 Active
SMDA05-6 SO-8 300 5 6 9.8 20 550 3 Active
SMDA12-6 SO-8 300 12 13.3 19 1 185 10 Active
SMDA15-6 SO-8 300 15 16.7 24 1 140 13 Active
SMDA24-6 SO-8 300 24 26.7 43 1 88 30 Active
SMDA36-6 SO-8 300 36 40 60 1 25 _ Active
S14C03-8 SO-14 300 3.3 4 7 200 300 _ Active
S14C05-8 SO-14 300 5 6 9.8 40 200 _ Active
S14C12-8 SO-14 300 12 13.3 19 1 80 _ Active
S14C15-8 SO-14 300 15 16.7 24 1 70 _ Active
S14C24-8 SO-14 300 24 26.7 43 1 45 _ Active
S14C36-8 SO-14 300 36 40 51 1 35 _ Active
S2303 SOT-23 300 3.3 4 8 200 600 — Active
S2305 SOT-23 300 5 6 10.8 20 400 — Active
S2312 SOT-23 300 12 13.3 19 0.1 160 — Active
S2315 SOT-23 300 15 16.7 24 0.1 130 — Active
S2324 SOT-23 300 24 26.7 44 0.1 80 — Active
S2336 SOT-23 300 36 40 60 0.1 50 — Active
S2303-A SOT-23 300 3.3 4 8 200 600 — Active
S2305-A SOT-23 300 5 6 10.8 20 400 — Active
S2312-A SOT-23 300 12 13.3 19 0.1 160 — Active
S2315-A SOT-23 300 15 16.7 24 0.1 130 — Active
S2324-A SOT-23 300 24 26.7 44 0.1 80 — Active
S2336-A SOT-23 300 36 40 60 0.1 50 — Active
S43LC0405 SOT-143 500 5 6 10.8 13 20 8 Active
S43LC0412 SOT-143 500 12 13.3 19 26 1 8 Active
S43LC0415 SOT-143 500 15 16.7 24 32 1 8 Active
S43LC0424 SOT-143 500 24 26.7 43 57 1 8 Active
S43LC0436 SOT-143 500 36 40 51 75 1 8 Active
S43LC0403 SOT-143 500 3.3 4 8 200 8 - Active
CESD5V0D5 SOD-523 190 5 6 - 10 95 - Active
CESD3V3D5 SOD-523 210 3.3 4 - 100 120 - Active
SMDA36 SO-8 300 36 40.0 51 1 80 - Active
CESD12VD5 SOD-523 170 12 13.3 16.5 1 45 - Active
SMDA05-A SO-8 300 5 6 9.8 20 600 3 Active
SMDA12-A SO-8 300 12 13.3 19 1 185 10 Active
SMDA15-A SO-8 300 15 16.7 24 1 140 13 Active
SMDA05LCC-A SO-8 300 5 6 9.8 20 15 1 Active
SMDA12LCC-A SO-8 300 12 13.3 19 1 15 8 Active
SMDA15LCC-A SO-8 300 15 16.7 24 1 15 11 Active
S1605-8-A SO-16 300 5 6 9.8 20 600 3 Active
S1612-8-A SO-16 300 12 13.3 19 1 185 10 Active
S1615-8-A SO-16 300 15 16.7 24 1 140 13 Active
S16C05-8-A SO-16 300 5 6 9.8 40 310 1 Active
S16C12-8-A SO-16 300 12 13.3 19 1 105 8 Active
S16C15-8-A SO-16 300 15 16.7 24 1 80 11 Active
S16LC05-8-A SO-16 300 5 6 9.8 20 25 1 Active
S16LC12-8-A SO-16 300 12 13.3 19 1 25 8 Active
S16LC15-8-A SO-16 300 15 16.7 24 1 25 11 Active
S16LCC05-8-A SO-16 300 5 6 9.8 20 25 1 Active
S16LCC08-8-A SO-16 300 8 8.5 13.4 1 25 5 Active
S16LCC12-8-A SO-16 300 12 13.3 19 1 25 8 Active
S16LCC15-8-A SO-16 300 15 16.7 24 1 25 11 Active
S23C05-A SOT-23 300 5 6 10.8 20 400 200 Active
S23C12-A SOT-23 300 12 13.3 19 0.1 160 80 Active
S23C15-A SOT-23 300 15 16.7 24 0.1 130 65 Active
S23LC05-A SOT-23 300 5 6 10.8 20 3 3 Active
S23LC12-A SOT-23 300 12 13.3 19 1 3 10 Active
S23LC15-A SOT-23 300 15 16.7 25 1 3 13 Active
SMDB05-A SO-8 500 5 6 9.8 20 600 3 Active
SMDB12-A SO-8 500 12 13.3 19 1 185 10 Active
SMDB15-A SO-8 500 15 16.7 24 1 140 13 Active
SMDB05C-A SO-8 500 5 6 9.8 40 300 1 Active
SMDB12C-A SO-8 500 12 13.3 19 1 94 8 Active
SMDB15C-A SO-8 500 15 16.7 24 1 70 11 Active
SMDB05LCC-A SO-8 500 5 6 9.8 20 15 1 Active
SMDB12LCC-A SO-8 500 12 13.3 19 1 15 8 Active
SMDB15LCC-A SO-8 500 15 16.7 24 1 15 11 Active
S8ULC05-2-A SO-8 500 5 6 10.8 20 3 1 Active
S8ULC12-2-A SO-8 500 12 13.3 19 1 3 8 Active
S8ULC15-2-A SO-8 500 15 16.7 25 1 3 11 Active
S8ULCC05-2-A SO-8 500 5 6 9.8 20 5 1 Active
S8ULCC12-2-A SO-8 500 12 13.3 19 1 5 8 Active
S8ULCC15-2-A SO-8 500 15 16.7 24 1 5 11 Active
S43LCC0403-A SOT-143 500 3.3 4 8 200 15 -5 Active
S43LCC0405-A SOT-143 500 5 6 10.8 40 15 1 Active
S43LCC0412-A SOT-143 500 12 13.3 19 1 15 8 Active
S43LCC0415-A SOT-143 500 15 16.7 24 1 15 11 Active
S43LCC0424-A SOT-143 500 24 26.7 43 1 15 28 Active
SD1524LCC SOD-323 160 15V, 24V 17.1V, 25.4V 25V, 40V 0.05 17 - Active
Top
