Schottky Rectifiers from SMC Diode Solutions
IO:1A-120A
VRVM:10V,15V,20V,30V,35V,40V,45V,50V,60V,80V,90V,100V,120V,135V,150V,200V,220V
Package:D2PAK,DO-15,DO-41,DO-201AD,DO-201AE,DPAK,ITO-220AB,ITO-220AC,PDFNWB5¡Á6-8L,SMA,SMAF,SMB,SMBF,SMC,SOD-123,SOD-123FL,SOD-323,SOD-323F,SOT-223,SOT-353,TO-220AB,TO-220AC,TO-247AC,TO-247AD,TO-262,TO-277B
Part Number
Data Sheet
Spice Model
Product Image
VRWM£¨V£©
IO (A)
IFSM Max.(A)
IR Max.@VRWM (mA)
VF Max. (V)
CT Max. (pF)
Part Status
PackAge
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
from  to
Apply Filter
Clear Filter
Close Filter
SS12 20 1 30 0.5 0.55 28 Active SMA
SS13 30 1 30 0.5 0.55 28 Active SMA
SS14 40 1 30 0.5 0.55 28 Active SMA
SS15 50 1 30 0.5 0.7 28 Active SMA
SS16 60 1 30 0.5 0.7 28 Active SMA
SS18 80 1 30 0.5 0.85 28 Active SMA
SS110 100 1 30 0.5 0.85 28 Active SMA
SS115 150 1 30 0.5 0.9 35 Active SMA
SS120 200 1 30 0.5 0.9 35 Active SMA
MBRD30100 100 30 150 1 0.95 650 Active DPAK
MBR1560 60 15 200 5 0.77 700 Active TO-220AC
MBRF1545 45 15 240 1 0.7 900 Active ITO-220AC
SS22AF 20 2 50 0.1 0.55 28 Active SMAF
SS23AF 30 2 50 0.1 0.55 28 Active SMAF
SS24AF 40 2 50 0.1 0.55 28 Active SMAF
SS245AF 45 2 50 0.1 0.55 28 Active SMAF
SS25AF 50 2 50 0.1 0.7 28 Active SMAF
SS26AF 60 2 50 0.1 0.7 28 Active SMAF
SS28AF 80 2 50 0.05 0.85 28 Active SMAF
SS210AF 100 2 50 0.05 0.85 28 Active SMAF
SS215AF 150 2 50 0.05 0.92 28 Active SMAF
SS220AF 200 2 50 0.05 0.92 28 Active SMAF
B5819WSL 40 1 9 0.05 0.6 120 Active SOD-323F
11DQ03 30 1.1 40 1 0.55 60 Active DO-41
11DQ04 40 1.1 40 1 0.55 60 Active DO-41
SBL5100 100 5 120 0.5 0.83 250 Active DO-201AD
SBR60100CT 100 60 400 1 0.90 800 Not for new designs TO-220AB
S12U 20 1 35 0.1 0.5 28 Active SMAF
S13U 30 1 35 0.1 0.5 28 Active SMAF
S14U 40 1 35 0.1 0.5 28 Active SMAF
S145U 45 1 35 0.1 0.5 28 Active SMAF
S15U 50 1 35 0.1 0.67 28 Active SMAF
S16U 60 1 35 0.1 0.67 28 Active SMAF
S18U 80 1 35 0.05 0.82 28 Active SMAF
S110U 100 1 35 0.05 0.82 28 Active SMAF
S115U 150 1 35 0.05 0.9 28 Active SMAF
S120U 200 1 35 0.05 0.9 28 Active SMAF
DSS12U 20 1 40 0.1 0.5 110 Active SOD-123FL
DSS13U 30 1 40 0.1 0.5 110 Active SOD-123FL
DSS14U 40 1 40 0.1 0.5 110 Active SOD-123FL
DSS15U 50 1 40 0.05 0.67 80 Active SOD-123FL
DSS16U 60 1 40 0.05 0.67 80 Active SOD-123FL
DSS18U 80 1 40 0.05 0.8 80 Active SOD-123FL
DSS110U 100 1 40 0.05 0.8 80 Active SOD-123FL
DSS115U 150 1 40 0.05 0.9 80 Active SOD-123FL
DSS120U 200 1 40 0.05 0.9 80 Active SOD-123FL
MBR1545S 45 15 200 1 0.58 - Active TO-277B
MBR60200CT 200 60 400 1 0.97 450 Active TO-220AB
MBRB30150CT 150 30 200 1 1 760 Active D2PAK
DSS22U 20 2 60 0.1 0.5 100 Active SOD-123FL
DSS23U 30 2 60 0.1 0.5 100 Active SOD-123FL
DSS24U 40 2 60 0.1 0.5 100 Active SOD-123FL
DSS25U 50 2 60 0.1 0.67 100 Active SOD-123FL
DSS26U 60 2 60 0.1 0.67 100 Active SOD-123FL
DSS28U 80 2 60 0.05 0.8 50 Active SOD-123FL
DSS210U 100 2 60 0.05 0.8 50 Active SOD-123FL
DSS215U 150 2 60 0.05 0.9 50 Active SOD-123FL
DSS220U 200 2 60 0.05 0.9 50 Active SOD-123FL
10MQ030N 30 1 25 1 0.45 38 Active SMA
10MQ040N 40 1 36 0.5 0.54 70 Active SMA
10MQ060N 60 1 12 0.5 0.67 45 Active SMA
10MQ100N-S 100 1 36 0.1 0.78 38 Active SMA
10MQ150N 150 1 20 0.5 0.86 45 Active SMA
10MQ200N 200 1 20 0.5 0.92 20 Active SMA
SL12 20 1 30 0.5 0.38 ¡ª Active SMA
SL13 30 1 30 0.5 0.38 ¡ª Active SMA
SL14 40 1 30 0.5 0.4 ¡ª Active SMA
10BQ015 15 1 48 0.5 0.35 390 Active SMB
10BQ030 30 1 50 0.5 0.42 200 Active SMB
10BQ040 40 1 45 0.1 0.53 - Active SMB
10BQ060 60 1 30 0.1 0.6 62 Active SMB
10BQ100 100 1 45 0.5 0.78 42 Active SMB
10BQ150 150 1 20 0.5 0.86 35 Active SMB
10BQ200 200 1 20 0.5 0.92 20 Active SMB
SK12 20 1 30 0.5 0.55 80 Active SMB
SK13 30 1 30 0.5 0.55 80 Active SMB
SK14 40 1 30 0.5 0.55 80 Active SMB
SK15 50 1 30 0.5 0.7 80 Active SMB
SK16 60 1 30 0.5 0.7 80 Active SMB
SK18 80 1 30 0.5 0.85 80 Active SMB
SK19 90 1 30 0.5 0.85 80 Active SMB
SK110 100 1 30 0.5 0.85 ¡ª Active SMB

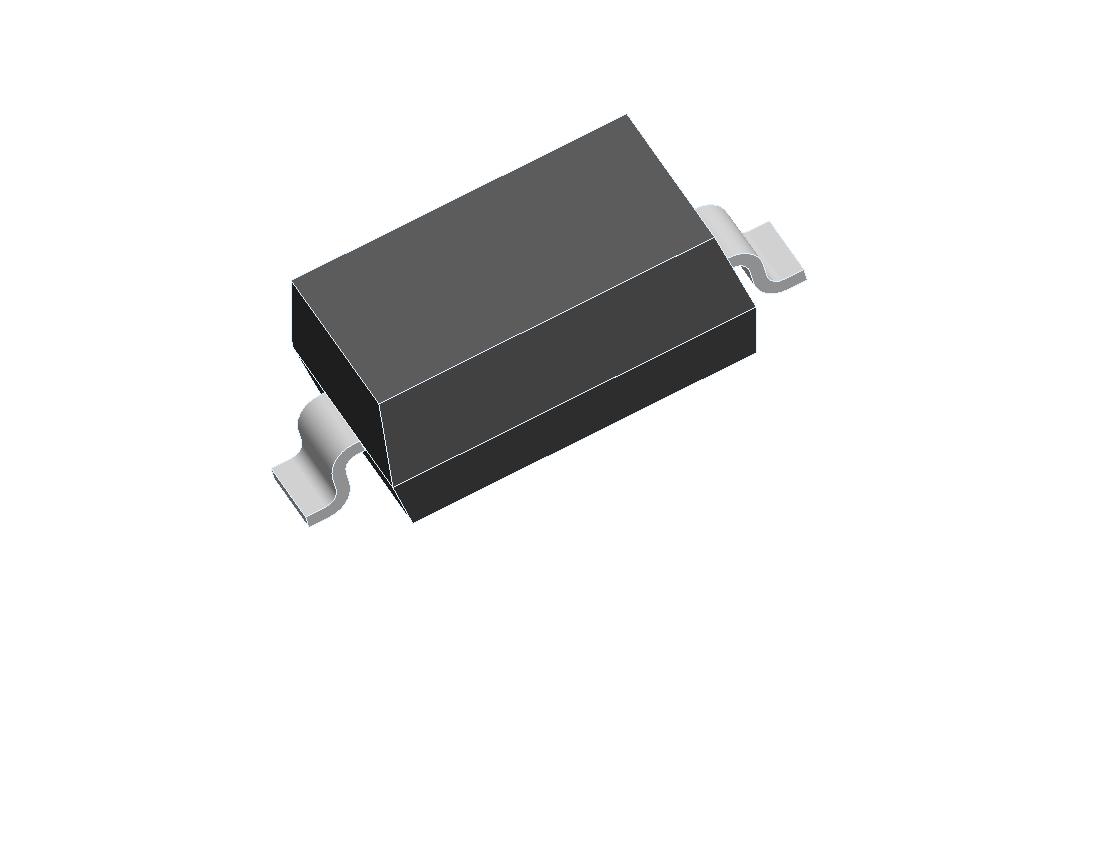

MBR120HW 20 1 25 0.4 0.45 50 Active SOD-123
MBR130HW 30 1 25 0.4 0.45 50 Active SOD-123
MBR140HW 40 1 25 0.5 0.55 50 Active SOD-123
MBR160HW 60 1 20 0.3 0.72 30 Active SOD-123
B5817W 20 1 9 1 0.45 120 Active SOD-123
B5818W 30 1 9 1 0.55 120 Active SOD-123
B5819W 40 1 9 1 0.6 120 Active SOD-123
1N5817W 20 1 40 0.1 0.5 110 Active SOD-123FL
1N5818W 30 1 40 0.1 0.5 110 Active SOD-123FL
1N5819W 40 1 40 0.1 0.5 110 Active SOD-123FL
SB120 20 1 40 0.5 0.55 110 Active DO-41
SB130 30 1 40 0.5 0.55 110 Active DO-41
SB140 40 1 40 0.5 0.55 110 Active DO-41
SB150 50 1 40 0.5 0.7 80 Active DO-41
SB160 60 1 40 0.5 0.7 80 Active DO-41
SB1100 100 1 40 1 0.85 80 Active DO-41
11DQ15 150 1 20 0.5 0.86 35 Active DO-41
SB1200 200 1 20 1 0.92 20 Active DO-41
SK22A 20 2 50 1 0.55 250 Active SMA
SK23A 30 2 50 0.5 0.55 250 Active SMA
SK24A 40 2 50 1 0.5 250 Active SMA
SK26A 60 2 50 1 0.7 250 Active SMA
SK210A 100 2 50 0.5 0.85 240 Active SMA
SK215A 150 2 50 0.5 0.95 240 Active SMA
SK220A 200 2 50 0.5 0.9 170 Active SMA
SL21A 10 2 50 0.7 0.35 - Active SMA
SL210A 100 2 70 0.1 0.78 200 Active SMA
SS24 40 2 50 0.4 0.5 ¡ª Active SMB
SK22 20 2 50 0.5 0.55 ¡ª Active SMB
SK23 30 2 50 0.5 0.55 ¡ª Active SMB
SK24 40 2 50 0.5 0.55 ¡ª Active SMB
SK25 50 2 50 0.5 0.7 ¡ª Active SMB
SK26 60 2 50 0.5 0.7 ¡ª Active SMB
SK28 80 2 50 0.5 0.85 ¡ª Active SMB
SK29 90 2 50 0.5 0.85 ¡ª Active SMB
SK210 100 2 50 0.5 0.85 ¡ª Active SMB
SK220 200 2 50 1 0.9 170 Active SMB
MBR230HW 30 2 40 1 0.43 200 Active SOD-123
MBR260HW 60 2 30 0.05 0.66 100 Active SOD-123
MBR230LS 30 2 25 1 0.5 100 Active SOD-123
SBR230LS 30 2 25 1 0.75 150 Active SOD-123
DSS22 20 2 40 0.5 0.55 80 Active SOD-123FL
DSS23 30 2 40 0.5 0.55 80 Active SOD-123FL
DSS24 40 2 40 0.5 0.55 80 Active SOD-123FL
DSS25 50 2 40 0.5 0.7 80 Active SOD-123FL
DSS26 60 2 40 0.5 0.7 80 Active SOD-123FL
DSS210 100 2 40 0.5 0.85 40 Active SOD-123FL
DSS28 80 2 40 0.5 0.85 40 Active SOD-123FL
DSS215 150 2 40 0.5 0.92 40 Active SOD-123FL
DSS220 200 2 40 0.5 0.92 40 Active SOD-123FL

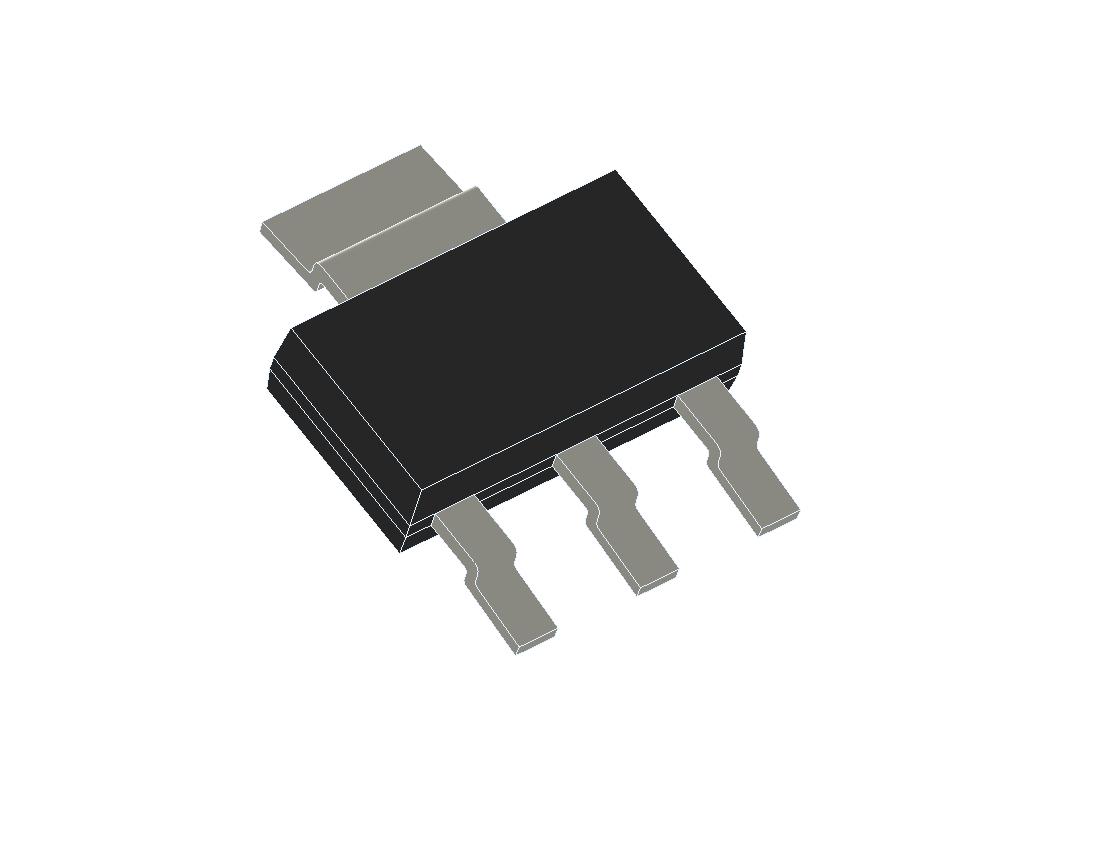

20CJQ030 30 2 28.8 0.1 0.59 120 Active SOT-223
20CJQ060 60 2 26 0.1 0.7 60 Active SOT-223
20CJQ100 100 2 26 0.5 0.85 45 Active SOT-223
SB220 20 2 50 0.5 0.5 170 Active DO-15
SB230 30 2 50 0.5 0.5 170 Active DO-15
SB240 40 2 50 0.5 0.5 170 Active DO-15
SB250 50 2 50 0.5 0.7 140 Active DO-15
SB260 60 2 50 0.5 0.7 140 Active DO-15
SB2100 100 2 50 0.5 0.85 140 Active DO-15
SB2150 150 2 50 1 0.88 140 Active DO-15
SB2200 200 2 50 1 0.9 170 Active DO-15
15MQ040N 40 2.1 60 1 0.49 134 Active SMA
15MQ045N 45 2.1 60 1 0.49 134 Active SMA
15MQ060N 60 2.1 60 1 0.5 250 Active SMA
SK32AF 20 3 70 0.5 0.55 500 Active SMAF
SK33AF 30 3 70 0.5 0.55 500 Active SMAF
SK34AF 40 3 70 0.5 0.55 500 Active SMAF
SK35AF 50 3 70 0.5 0.7 300 Active SMAF
SK36AF 60 3 70 0.5 0.7 300 Active SMAF
SK38AF 80 3 70 0.1 0.85 300 Active SMAF
SK310AF 100 3 70 0.1 0.85 300 Active SMAF
SK315AF 150 3 70 0.1 0.95 300 Active SMAF
SK32A 20 3 100 1 0.55 350 Active SMA
SK33A 30 3 100 1 0.55 350 Active SMA
SK36A 60 3 100 1 0.75 250 Active SMA
SK34A 40 3 75 0.05 0.63 60 Active SMA
SK310A 100 3 80 0.6 0.85 250 Active SMA
SK320A 200 3 80 1 0.9 100 Active SMA
B330A 30 3 100 0.5 0.5 250 Active SMA
B340A 40 3 100 0.5 0.5 250 Active SMA
SL34A 40 3 70 1 0.5 250 Active SMA
SL36A 60 3 70 1 0.58 250 Active SMA

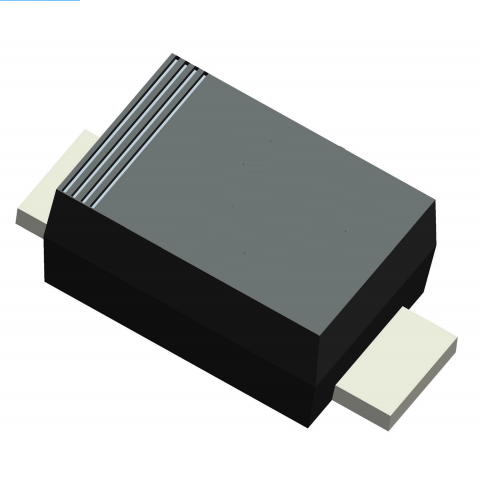

SK32BF 20 3 80 0.5 0.55 ¡ª Active SMBF
SK34BF 40 3 80 0.5 0.55 ¡ª Active SMBF
SK36BF 60 3 80 0.5 0.7 ¡ª Active SMBF
SK38BF 80 3 80 0.5 0.7 ¡ª Active SMBF
SK310BF 100 3 70 0.3 0.85 ¡ª Active SMBF
SK312BF 120 3 70 0.3 0.85 ¡ª Active SMBF
SK315BF 150 3 70 0.3 0.95 ¡ª Active SMBF
SK320BF 200 3 70 0.3 0.95 ¡ª Active SMBF
SK34B 40 3 75 1 0.63 60 Active SMB
SL34B 40 3 70 1 0.5 250 Active SMB
SK36B 60 3 80 0.5 0.74 250 Active SMB
SK310B 100 3 110 0.6 0.85 250 Active SMB
SK315B 150 3 80 1 0.89 100 Active SMB
SK320B 200 3 80 1 0.9 100 Active SMB
30BQ015 15 3 100 4 0.35 1120 Active SMC
30BQ040 40 3 80 0.5 0.53 230 Active SMC
30BQ060 60 3 80 0.5 0.58 180 Active SMC
30BQ100 100 3 80 0.5 0.79 115 Active SMC
30BQ150 150 3 55 1 0.86 110 Active SMC
30BQ200 200 3 55 1 0.92 60 Active SMC
SK32 20 3 100 0.5 0.55 - Active SMC
SK33 30 3 100 0.5 0.55 - Active SMC
SK34 40 3 75 0.05 0.63 150 Active SMC
SK35 50 3 100 0.5 0.75 - Active SMC
SK36 60 3 100 0.5 0.75 - Active SMC
SK38 80 3 110 1 0.79 250 Active SMC
SK310 100 3 110 0.6 0.85 250 Active SMC
SK315 150 3 80 1 0.89 100 Active SMC
SK320 200 3 80 1 0.9 200 Active SMC
MBRD320 20 3 75 0.2 0.6 400 Active DPAK
MBRD330 30 3 75 0.2 0.6 400 Active DPAK
MBRD340 40 3 75 0.2 0.6 400 Active DPAK
MBRD350 50 3 75 0.2 0.6 400 Active DPAK
MBRD360 60 3 75 0.2 0.6 400 Active DPAK
MBRD380 80 3 80 1 0.75 250 Active DPAK
MBRD3100 100 3 80 1 0.85 250 Active DPAK
MBRD3150 150 3 60 1 0.9 100 Active DPAK
MBRD3200 200 3 80 1 0.92 100 Active DPAK
MBR330FL 30 3 80 0.5 0.5 - Active SOD-123FL
MBR340S 40 3 75 1 0.63 200 Active TO-277B
SB340 40 3 80 1 0.52 200 Active DO-201AD
SB360 60 3 80 0.5 0.74 250 Active DO-201AD
SB3100 100 3 80 1 0.79 250 Active DO-201AD
SB3150 150 3 110 1 0.89 200 Active DO-201AD
SB3200 200 3 80 0.5 0.85 100 Active DO-201AD
SB3220 220 3 110 1 0.9 150 Active DO-201AD
30WQ03FN 30 3.5 108 2 0.45 290 Active DPAK
30WQ04FN 40 3.5 96 2 0.53 300 Active DPAK
30WQ06FN 60 3.5 80 2 0.61 200 Active DPAK
30WQ10FN 100 3.5 80 1 0.81 92 Active DPAK
30WQ15FN 150 3.5 84 1 0.83 200 Active DPAK
30WQ20FN 200 3.5 84 1 0.89 60 Active DPAK
SK45A 50 4 110 1 0.65 300 Active SMA
SK46A 60 4 110 1 0.65 300 Active SMA
SL42 20 4 110 0.5 0.42 ¡ª Active SMC
SL43 30 4 110 0.5 0.42 ¡ª Active SMC
SL44 40 4 110 0.5 0.44 ¡ª Active SMC
MBRD460CTL 60 4 110 0.5 0.5 220 Active DPAK
MBRD460L 60 4 140 0.5 0.5 400 Active DPAK
SL54A 40 5 100 1 0.5 280 Active SMA
SL56A 60 5 80 0.22 0.6 200 Active SMA
SL520A 200 5 120 0.1 0.89 150 Active SMA
SK54A 40 5 125 1 0.65 280 Active SMA
SK510A 100 5 120 0.1 0.85 200 Active SMA
SK54B 40 5 125 1 0.65 280 Active SMB
SK56B 60 5 125 0.5 0.7 400 Active SMB
SK510B 100 5 120 0.1 0.85 200 Active SMB
SK515B 150 5 120 1 0.93 200 Active SMB
SK520B 200 5 110 1 1.1 200 Active SMB
SL54B 40 5 100 0.5 0.55 280 Active SMB
SL53 30 5 120 0.7 0.45 ¡ª Active SMC
SK54 40 5 125 1 0.65 280 Active SMC
SK56 60 5 125 1 0.7 400 Active SMC
SK510 100 5 120 0.1 0.85 200 Active SMC
SK515 150 5 120 1 0.93 200 Active SMC
SK520 200 5 110 1 1.1 ¡ª Active SMC
MBRD5200CT 200 5 60 1 0.85 150 Active DPAK
MBRD540 40 5 125 1 0.7 300 Active DPAK
MBRD560 60 5 100 1 0.65 300 Active DPAK
MBRD580 80 5 100 1 0.75 300 Active DPAK
MBRD5100 100 5 100 1 0.85 300 Active DPAK
MBRD5150 150 5 100 1 0.9 150 Active DPAK
MBRD5200 200 5 100 1 0.92 150 Active DPAK
SBRD5150 150 5 60 1 0.9 100 Not for new designs DPAK
SBRD5200 200 5 80 1 0.98 150 Not for new designs DPAK
MBR540S 40 5 120 1 0.52 300 Active TO-277B
MBR560S 60 5 120 0.15 0.67 ¡ª Active TO-277B
MBR5100S 100 5 120 1 0.85 ¡ª Active TO-277B
MBRF560L 60 5 125 1 0.6 220 Active ITO-220AC
SB520 20 5 120 0.5 0.55 400 Active DO-201AD
SB530 30 5 120 0.5 0.55 550 Active DO-201AD
SB540 40 5 150 1 0.65 280 Active DO-201AD
SB550 50 5 120 0.5 0.7 550 Active DO-201AD
SB560 60 5 120 1 0.7 400 Active DO-201AD
SB5100 100 5 120 0.5 0.85 250 Active DO-201AD
SB5150 150 5 120 1 0.93 200 Active DO-201AD
SB5200 200 5 120 1 1.1 200 Active DO-201AD
SB5100U 100 5 120 0.5 0.82 250 Active DO-201AD
SB5150L 150 5 120 1 0.93 200 Active DO-201AD
SBL5200 200 5 120 1 0.95 ¡ª Active DO-201AD
SBS5100 100 5 120 0.5 0.85 250 Active DO-201AE
SBS5150 150 5 120 1 0.93 200 Active DO-201AE
50WQ03FN 30 5.5 156 3 0.46 590 Active DPAK
50WQ04FN 40 5.5 84 3 0.51 405 Active DPAK
50WQ06FN 60 5.5 120 3 0.57 360 Active DPAK
50WQ10FN 100 5.5 130 1 0.77 250 Active DPAK
50WQ15FN 150 5.5 132 1 0.81 183 Active DPAK
50WQ20FN 200 5.5 132 1 0.87 150 Active DPAK
MBRD630CT 30 6 75 0.1 0.7 ¡ª Active DPAK
MBRD650CT 50 6 75 0.1 0.7 ¡ª Active DPAK
MBRD660L 60 6 200 1 0.5 400 Active DPAK
MBRD660 60 6 125 1 0.75 400 Active DPAK
MBRD660CTL 60 6 150 1 0.5 250 Active DPAK
MBRD660CT 60 6 75 0.1 0.7 ¡ª Active DPAK
MBRD6100CT 100 6 80 1 0.85 300 Active DPAK
MBRD6200 200 6 128 1 0.92 150 Active DPAK
SB6200 200 6 128 1 0.9 150 Active DO-201AD
6CWQ03FN 30 7 108 2 0.45 290 Active DPAK
6CWQ04FN 40 7 96 2 0.53 189 Active DPAK
6CWQ06FN 60 7 80 2 0.61 145 Active DPAK
6CWQ10FN 100 7 80 1 0.81 92 Active DPAK
6CWQ15FN 150 7 84 1 0.83 100 Active DPAK
6CWQ20FN 200 7 84 1 0.89 60 Active DPAK
MBR735 35 7.5 150 0.1 0.84 700 Active TO-220AC
MBR745 45 7.5 150 0.1 0.84 700 Active TO-220AC
MBRB735 35 7.5 150 0.1 0.84 400 Active D2PAK
MBRB745 45 7.5 150 0.1 0.84 400 Active D2PAK
MBR760 60 7.5 150 0.5 0.75 400 Active TO-220AC
MBRB760 60 7.5 150 0.5 0.75 400 Active D2PAK
SK86 60 8 200 1 0.65 640 Active SMC
SK810 100 8 200 1 0.8 400 Active SMC
8TQ080 80 8 330 1 0.75 500 Active TO-220AC
8TQ100 100 8 330 1 0.75 500 Active TO-220AC
8TQ150 150 8 276 0.55 0.8 500 Active TO-220AC
8TQ200 200 8 276 0.55 0.84 300 Active TO-220AC
MBR860S 60 8 150 1 0.65 400 Active TO-277B
MBRD835 35 8 75 1.4 0.51 740 Active DPAK
MBRD8100 100 8 150 1 0.9 400 Active DPAK
8TQ080S 80 8 330 1 0.75 500 Active D2PAK
8TQ100S 100 8 330 1 0.75 500 Active D2PAK
8TQ150S 150 8 276 0.55 0.8 500 Active D2PAK
8TQ200S 200 8 276 0.55 0.84 300 Active D2PAK
SB840 40 8 160 1 0.65 200 Active DO-201AD
SB845 45 8 200 1 0.53 900 Active DO-201AD
SB860 60 8 180 1 0.7 400 Active DO-201AD
8SQ045 45 8 200 1 0.53 900 Active R-6
95SQ015 15 9 480 7 0.34 1300 Active DO-201AD
90SQ035 35 9 340 1.75 0.48 900 Active DO-201AD
90SQ040 40 9 340 1.75 0.48 900 Active DO-201AD
90SQ045 45 9 340 1.75 0.48 900 Active DO-201AD
MBR1020 20 10 150 0.2 0.55 ¡ª Active TO-220AC
MBR1035 35 10 150 0.1 0.84 600 Active TO-220AC
MBR1040 40 10 150 1 0.84 450 Active TO-220AC
MBR1045 45 10 150 0.1 0.65 600 Active TO-220AC
MBR1060 60 10 150 1 0.8 600 Active TO-220AC
MBR10100 100 10 150 0.1 0.85 300 Active TO-220AC
SBR1060 60 10 130 1 0.8 300 Not for new designs TO-220AC
10CTQ150 150 10 138 0.05 0.93 200 Active TO-220AB
MBR1040CT 40 10 125 1 0.7 280 Active TO-220AB
MBR1045CT 45 10 125 1 0.7 300 Active TO-220AB
MBR1045CTP 45 10 125 1 0.7 300 Active TO-220AB
MBR1045CTU 45 10 220 1 0.5 280 Active TO-220AB
MBR1060CT 60 10 125 1 0.7 220 Active TO-220AB
MBR1060CTP 60 10 125 1 0.7 220 Active TO-220AB
MBR1060CTL 60 10 125 1 0.6 220 Active TO-220AB
MBR1080CT 80 10 120 1 0.85 300 Active TO-220AB
MBR1080CTL 80 10 125 1 0.69 220 Active TO-220AB
MBR1090CT 90 10 120 1 0.85 300 Active TO-220AB
MBR10100CT 100 10 120 1 0.85 300 Active TO-220AB
MBR10100CTP 100 10 120 1 0.85 300 Active TO-220AB
MBR10100CTU 100 10 120 1 0.82 300 Active TO-220AB
MBR10150CT 150 10 100 1 0.93 200 Active TO-220AB
MBR10150CTL 150 10 138 1 0.93 200 Active TO-220AB
MBR10200CT 200 10 128 1 0.98 150 Active TO-220AB
MBR10200CTL 200 10 128 1 0.98 150 Active TO-220AB
SBR1045CT 45 10 60 1 0.75 280 Not for new designs TO-220AB
SBR1060CT 60 10 125 1 0.75 220 Not for new designs TO-220AB
SBR1060CTL 60 10 125 1 0.75 220 Not for new designs TO-220AB
SBR10100CT 100 10 120 1 0.88 300 Not for new designs TO-220AB
SBR10150CT 150 10 120 1 0.93 200 Not for new designs TO-220AB
SBR10150CTL 150 10 120 1 0.98 200 Not for new designs TO-220AB
SBR10200CT 200 10 120 1 0.98 150 Not for new designs TO-220AB
MBR10100CT-1 100 10 120 1 0.85 300 Active TO-262
MBR10150CT-1 150 10 100 1 0.93 200 Active TO-262
MBR1045S 45 10 275 1 0.5 ¡ª Active TO-277B
MBR1060S 60 10 200 1 0.63 850 Active TO-277B
MBRD1045 45 10 150 1 0.7 400 Active DPAK
MBRD1045CT 45 10 125 1 0.7 300 Active DPAK
MBRD1060 60 10 120 1 0.8 300 Active DPAK
MBRD1060CT 60 10 125 1 0.7 300 Active DPAK
MBRD1080CT 80 10 120 1 0.75 300 Active DPAK
MBRD10100 100 10 150 1 0.9 300 Active DPAK
MBRD10100CT 100 10 125 1 0.85 300 Active DPAK
MBRD10150 150 10 120 1 1 300 Active DPAK
MBRD10150CT 150 10 100 1 0.9 200 Active DPAK
MBRD10200 200 10 150 1 0.9 300 Active DPAK
MBRD10200CT 200 10 128 1 0.9 150 Active DPAK
SBRD10200 200 10 100 1 0.95 150 Active DPAK
SBRD10200CT 200 10 80 1 0.98 150 Not for new designs DPAK
10TQ035S 35 10 330 2 0.57 900 Active D2PAK
10CTQ150S 150 10 138 0.05 0.93 200 Active D2PAK
MBRB1035 35 10 150 0.1 0.84 600 Active D2PAK
MBRB1045 45 10 150 0.1 0.84 600 Active D2PAK
MBRB1045CT 45 10 125 1 0.7 300 Active D2PAK
MBRB1060 60 10 150 1 0.8 600 Active D2PAK
MBRB1060CT 60 10 125 1 0.8 500 Active D2PAK
MBRB10100 100 10 150 1 0.9 300 Active D2PAK
MBRB10100CT 100 10 125 1 0.85 300 Active D2PAK
MBRB10150CT 150 10 100 1 0.93 200 Active D2PAK
MBRB10200CT 200 10 128 1 0.98 150 Active D2PAK
MBRF1040 40 10 150 1 0.84 450 Active ITO-220AC
MBRF1045 45 10 150 1 0.65 400 Active ITO-220AC
MBRF1060 60 10 150 1 0.8 400 Active ITO-220AC
MBRF10100 100 10 150 1 0.85 300 Active ITO-220AC
MBRF10150 150 10 138 1 1.1 400 Active ITO-220AC
MBRF10200 200 10 128 1 0.95 300 Active ITO-220AC
SBRF1060 60 10 130 1 0.8 300 Not for new designs ITO-220AC
MBRF1040CTL 40 10 100 1 0.6 450 Active ITO-220AB
MBRF1045CT 45 10 150 1 0.7 300 Active ITO-220AB
MBRF1045CTP 45 10 125 1 0.7 300 Active ITO-220AB
MBRF1060CT 60 10 125 1 0.7 220 Active ITO-220AB
MBRF1060CTL 60 10 125 1 0.6 220 Active ITO-220AB
MBRF1060CTLP 60 10 125 1 0.6 220 Active ITO-220AB
MBRF1060CTP 60 10 125 1 0.7 220 Active ITO-220AB
MBRF1080CT 80 10 120 1 0.85 300 Active ITO-220AB
MBRF1080CTR 80 10 120 1 0.85 300 Active ITO-220AB
MBRF1080CTL 80 10 125 1 0.75 220 Active ITO-220AB
MBRF1080CTP 80 10 125 1 0.75 220 Active ITO-220AB
MBRF10100CT 100 10 120 1 0.85 300 Active ITO-220AB
MBRF10100CTL 100 10 120 1 0.85 300 Active ITO-220AB
MBRF10100CTP 100 10 120 1 0.85 300 Active ITO-220AB
MBRF10100CTU 100 10 120 1 0.82 300 Active ITO-220AB
MBRF10100CTR 100 10 120 1 0.85 300 Active ITO-220AB
MBR10150CTU 150 10 138 1 0.9 200 Active TO-220AB
MBRF10150CT 150 10 100 1 0.93 200 Active ITO-220AB
MBRF10150CTR 150 10 100 1 0.93 200 Active ITO-220AB
MBRF10150CTL 150 10 138 1 0.93 200 Active ITO-220AB
MBRF10200CT 200 10 128 1 0.98 150 Active ITO-220AB
MBRF10200CTL 200 10 128 1 0.85 150 Active ITO-220AB
MBRF10200CTR 200 10 128 1 0.98 150 Active ITO-220AB
SBRF1045CT 45 10 125 1 0.7 300 Not for new designs ITO-220AB
SBRF1060CT 60 10 125 1 0.75 220 Not for new designs ITO-220AB
SBRF1060CTL 60 10 125 1 0.6 220 Not for new designs ITO-220AB
SBRF10100CT 100 10 120 1 0.85 300 Not for new designs ITO-220AB
SBRF10100CTL 100 10 120 1 0.91 250 Not for new designs ITO-220AB
SBRF10150CT 150 10 120 1 1.1 200 Not for new designs ITO-220AB
SBRF10150CTL 150 10 120 1 0.98 200 Not for new designs ITO-220AB
SBRF10200CT 200 10 120 1 0.98 150 Not for new designs ITO-220AB
SB10100 100 10 150 1 0.85 ¡ª Active DO-201AD
SB10150 150 10 200 1 1.05 300 Active DO-201AD
SB10200 200 10 200 1 1.1 300 Active DO-201AD
10SQ050 50 10 150 1 0.55 ¡ª Active R-6
12CWQ03FN 30 12 156 3 0.47 590 Active DPAK
12CWQ04FN 40 12 84 1 0.53 405 Active DPAK
12CWQ06FN 60 12 126 3 0.61 360 Active DPAK
12CWQ10FN 100 12 130 1 0.8 250 Active DPAK
12CWQ15FN 150 12 132 1 0.89 183 Active DPAK
12CWQ20FN 200 12 132 1 0.89 150 Active DPAK
MBRD12100CT 100 12 132 1 0.85 183 Active DPAK
MBRD12150CT 150 12 120 1 0.93 200 Active DPAK
12CTQ040S 40 12 160 0.8 0.6 400 Active D2PAK
12SQ045 45 12 275 0.5 0.55 ¡ª Active R-6
12TQ035 35 15 300 1.75 0.56 900 Active TO-220AC
12TQ040 40 15 300 1.75 0.56 900 Active TO-220AC
12TQ045 45 15 300 1.75 0.56 900 Active TO-220AC
12TQ080 80 15 276 0.55 0.84 500 Active TO-220AC
12TQ100 100 15 276 0.55 0.84 500 Active TO-220AC
12TQ150 150 15 276 0.55 0.86 500 Active TO-220AC
12TQ200 200 15 276 0.55 0.92 300 Active TO-220AC
15TQ045-S 45 15 400 0.05 0.58 1700 Active TO-220AC
MBR1545 45 15 240 1 0.7 900 Active TO-220AC
MBR15200 200 15 200 1 0.9 400 Active TO-220AC
MBR1545CT 45 15 180 1 0.84 400 Active TO-220AB
MBR1560CT 60 15 150 1 0.9 300 Active TO-220AB
SBR1545CT 45 15 180 1 0.72 400 Not for new designs TO-220AB
MBR545SL 45 5 120 1 0.43 280 Active TO-277B
MBR1550S 50 15 280 1 0.52 850 Active TO-277B
MBR1560S 60 15 250 0.2 0.59 850 Active TO-277B
MBR15200S 200 15 250 1 0.92 400 Active TO-277B
MBR15200DJF 200 15 250 1 0.92 400 Active PDFNWB5¡Á6-8L
MBRB2035CT 35 20 200 1 0.7 600 Active D2PAK
MBRD20H45CT 45 20 150 0.1 0.7 350 Active DPAK
12CTQ035 35 12 160 0.8 0.6 400 Active TO-220AB
12CTQ035S 35 12 160 0.8 0.6 400 Active D2PAK
MBR3035CT-1 35 30 240 1 0.7 500 Active TO-262
SBS540 40 5 150 1 0.65 280 Active DO-201AE
SL53A 30 5 120 0.5 0.5 500 Active SMA
RB13 30 1 5 0.05 0.57 Active SOT-353
SK220LA 200 2 50 0.5 0.84 170 Active SMA
SK215 150 2 50 0.5 0.95 240 Active SMB
DSS32 20 3 80 0.1 0.55 110 Active SOD-123FL
DSS33 30 3 80 0.1 0.55 110 Active SOD-123FL
DSS35 50 3 80 0.1 0.7 110 Active SOD-123FL
DSS36 60 3 80 0.1 0.7 110 Active SOD-123FL
DSS38 80 3 80 0.05 0.85 70 Active SOD-123FL
DSS310 100 3 80 0.05 0.85 70 Active SOD-123FL
DSS315 150 3 80 0.05 0.92 70 Active SOD-123FL
DSS320 200 3 80 0.05 0.92 70 Active SOD-123FL
MBRF1660 60 16 150 1 0.75 700 Active ITO-220AC
12CTQ040 40 12 160 0.8 0.6 400 Active TO-220AB
12CTQ045 45 12 160 0.8 0.6 400 Active TO-220AB
12CTQ045S 45 12 160 0.8 0.6 400 Active D2PAK
10DQ03 30 1 40 0.5 0.55 110 Active DO-41
10DQ04 40 1 40 0.5 0.55 110 Active DO-41
10DQ05 50 1 40 0.5 0.7 80 Active DO-41
10DQ06 60 1 40 0.5 0.7 80 Active DO-41
20CJQ045 45 2 26 0.1 0.54 60 Active SOT-223
10TQ040S 40 10 330 2 0.57 900 Active D2PAK
10TQ045S 45 10 330 2 0.57 900 Active D2PAK
10TQ035 35 10 330 2 0.57 900 Active TO-220AB
10TQ040 40 10 330 2 0.57 900 Active TO-220AB
10TQ045 45 10 330 2 0.57 900 Active TO-220AB
11DQ05 50 1.1 30 1 0.58 55 Active DO-41
11DQ06 60 1.1 30 1 0.58 55 Active DO-41
11DQ09 90 1.1 17 0.5 0.85 35 Active DO-41
11DQ10 100 1.1 17 0.5 0.85 35 Active DO-41
12CTQ030 30 12 160 0.8 0.6 400 Active TO-220AB
12CTQ030S 30 12 160 0.8 0.6 400 Active D2PAK
MBR1535CT 35 15 180 1 0.84 400 Active TO-220AC
15CTQ035 35 15 180 1 0.84 400 Active TO-220AB
15CTQ040 40 15 180 1 0.84 400 Active TO-220AB
15CTQ045 45 15 180 1 0.84 400 Active TO-220AB
15CTQ035S 35 15 180 1 0.84 400 Active D2PAK
15CTQ040S 40 15 180 1 0.84 400 Active D2PAK
15CTQ045S 45 15 180 1 0.84 400 Active D2PAK
16CTQ080S 80 16 280 0.55 0.75 500 Active D2PAK
16CTQ100S 100 16 280 0.55 0.75 500 Active D2PAK
MBRB1535CT 35 15 180 1 0.84 400 Active D2PAK
18TQ035S 35 18 390 0.5 0.5 1400 Active D2PAK
18TQ045S 45 18 390 2.5 0.5 1400 Active D2PAK
MBR2080CT 80 20 150 1 0.9 300 Active TO-220AB
MBR2090CT 90 20 150 1 0.9 300 Active TO-220AB
20CTQ030 30 20 260 1 0.8 600 Active TO-220AB
20CTQ035 35 20 260 1 0.8 600 Active TO-220AB
20CTQ040 40 20 260 1 0.8 600 Active TO-220AB
20CTQ045 45 20 260 1 0.8 600 Active TO-220AB
20CTQ030S 30 20 260 1 0.8 600 Active D2PAK
20CTQ035S 35 20 260 1 0.8 600 Active D2PAK
20CTQ040S 40 20 260 1 0.8 600 Active D2PAK
20CTQ045S 45 20 260 1 0.8 600 Active D2PAK
20TQ035S 35 20 480 2.7 0.57 1650 Active D2PAK
20TQ045S 45 20 480 2.7 0.57 1650 Active D2PAK
25CTQ035 35 30 300 1.75 0.56 900 Active TO-220AB
25CTQ035S 35 30 300 1.75 0.56 900 Active D2PAK
31DQ03 30 3.3 80 1 0.57 250 Active DO-201AD
31DQ04 40 3.3 80 1 0.57 190 Active DO-201AD
31DQ05 50 3.3 66 2 0.62 160 Active DO-201AD
31DQ06 60 3.3 66 2 0.62 160 Active DO-201AD
31DQ09 90 3.3 42 1 0.85 110 Active DO-201AD
31DQ10 100 3.3 42 1 0.85 110 Active DO-201AD
MBRB2090CT 90 20 150 1 0.9 300 Active D2PAK
30CTQ030 30 30 318 2 0.62 900 Active TO-220AB
30CTQ030S 30 30 318 2 0.62 900 Active D2PAK
50HQ035 35 60 1150 5 0.6 2600 Active DO-5
50HQ040 40 60 1150 5 0.6 2600 Active DO-5
50HQ045 45 60 1150 5 0.6 2600 Active DO-5
SK315A 150 3 80 1 0.89 100 Active SMA
SK1010 100 10 250 1 0.85 500 Active SMC
MBR4010D1-A 40 1 5 0.1 0.6 - Active DFN1006-2L
SK156 60 15 275 1 0.65 900 Active SMC
MBRD1545CT 45 15 150 1 0.65 400 Active DPAK
MBRD1545CTL 45 15 140 1 0.6 400 Active DPAK
MBRD1560CT 60 15 150 1 0.9 300 Active DPAK
12TQ035S 35 15 300 1.75 0.56 900 Active D2PAK
12TQ040S 40 15 300 1.75 0.56 900 Active D2PAK
12TQ045S 45 15 300 1.75 0.56 900 Active D2PAK
12TQ080S 80 15 276 0.55 0.84 500 Active D2PAK
12TQ100S 100 15 276 0.55 0.84 500 Active D2PAK
12TQ150S 150 15 276 0.55 0.86 500 Active D2PAK
12TQ200S 200 15 276 0.55 0.92 300 Active D2PAK
MBRB1545 45 15 240 1 0.7 900 Active D2PAK
MBRB1545CT 45 15 180 1 0.84 400 Active D2PAK
MBRB1560CT 60 15 150 1 0.9 300 Active D2PAK
MBRB1560 60 15 200 5 0.77 700 Active D2PAK
MBRF1530CT 30 15 156 1 0.5 590 Active ITO-220AB
MBRF1530CTR 30 15 156 1 0.5 590 Active ITO-220AB
MBRF1545CT 45 15 180 1 0.84 400 Active ITO-220AB
MBRF1560CT 60 15 150 1 0.9 300 Active ITO-220AB
MBRF15100CT 100 15 120 0.1 0.95 300 Active ITO-220AB
MBRF15200 200 15 200 1 0.9 400 Active ITO-220AC
SBRF1545CT 45 15 180 1 0.72 400 Not for new designs ITO-220AB
SBRF1560CT 60 15 120 1 0.9 220 Not for new designs ITO-220AB
15SQ030 30 15 300 0.5 0.55 ¡ª Active R-6
15SQ040L 40 15 150 0.5 0.48 ¡ª Active R-6
15SQ045 45 15 300 0.5 0.55 ¡ª Active R-6
15SQ050 50 15 300 0.5 0.68 ¡ª Active R-6
15SQ060 60 15 300 0.5 0.68 ¡ª Active R-6
15SQ100 100 15 340 0.5 0.83 ¡ª Active R-6
MBR1635 35 16 150 1 0.63 1400 Active TO-220AC
MBR1645 45 16 150 1 0.63 1400 Active TO-220AC
MBR1650 50 16 150 1 0.75 ¡ª Active TO-220AC
MBR1660 60 16 150 1 0.75 ¡ª Active TO-220AC
16CTQ080 80 16 280 0.55 0.75 500 Active TO-220AB
16CTQ100 100 16 280 0.55 0.75 500 Active TO-220AB
16CTQ150 150 16 276 0.55 0.8 500 Active TO-220AB
16CTQ200 200 16 <
