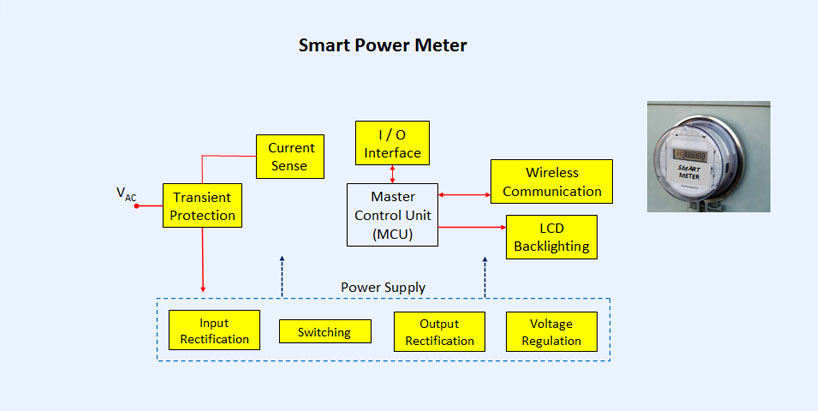

| No. | Block | Suggested Product Famlily |
Suggested Part Number |
| 1 | Transient Protection |
Transient Voltage Suppressors |
1.5KE200CA |
| SMCJ170CA | |||
| 1.5KE400CA | |||
| 3.0SMCJ170CA | |||
| SMBJ400CA | |||
| 2 | Input Rectification |
Bridge Rectifiers |
DF156S |
| DB155S | |||
| KBP206G | |||
| 3 | Switching | Ultra Fast Rectifiers |
ES1D |
| ER3D | |||
| ES1DSL | |||
| 4 | Output Rectification |
Schottky Rectifiers |
SL54B |
| MBRD540 | |||
| MBRD10100 | |||
| MBRF10100CT | |||
| 5 | I/O Interface | EOS TVS | eGuard0522P |
| eGuard0524P | |||
| SD05 | |||
| SMP1008-01WTG | |||
| 6 | Current Sense |
Small Signal Diodes | 1N4448WS |
| 1N4148WT | |||
| 7 | Wireless Communication |
EOS TVS | eGuard0522P |
| eGuard0524P | |||
| SMP1008-01WTG | |||
| 8 | LCD Back Lighting |
Low Dropout Regulators |
BZT52B5V1S |
| BZT52B12S | |||
| BZT52C36 | |||
| Small Signal Diodes | 1N4448WS | ||
| 1N4148WT | |||
| BAV70W |
